TL7770-5IDW - Texas Instruments

Description: Dual Svs, 5V & Pgmmable, W/Pgmmable Time Delay

Download TL7770-5IDW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

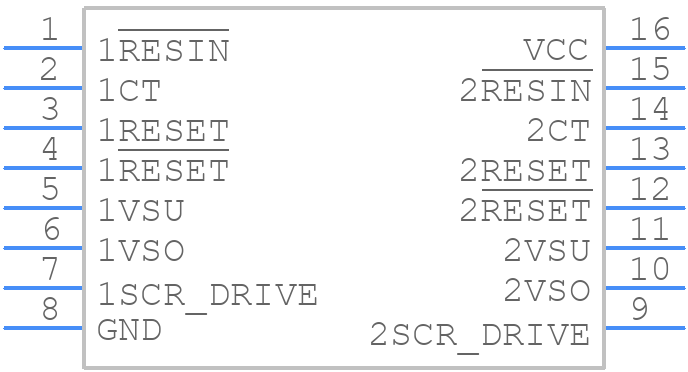

TL7770-5IDW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TL7770-5IDW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016A
click to zoom
3D Models
TL7770-5IDW - Texas Instruments - 3D model - Small Outline Packages - DW0016A
click to zoom

TL7770-5IDW Details

  • Manufacturer Part Number:

    TL7770-5IDW

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    POWER ON RESET GENERATOR

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    6.5 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.55V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TL7770-5IDW Frequently Asked Questions (FAQs)

  • It is recommended to place the TL7770-5IDW close to the power source, use a solid ground plane, and keep the input and output traces short and separate to minimize noise. Additionally, decoupling capacitors should be placed close to the device.
  • The TL7770-5IDW requires a bias voltage of 2.5V to 5.5V on the VCC pin. Ensure the bias voltage is stable and within the recommended range. Additionally, the input voltage should be within the recommended range of 2.5V to 5.5V.
  • The TL7770-5IDW can deliver up to 1A of output current. However, it's recommended to limit the output current to 500mA to ensure reliable operation and prevent overheating.
  • The TL7770-5IDW has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, it's recommended to add external protection circuits, such as voltage supervisors or crowbar circuits, to ensure the device is protected from voltage transients and faults.
  • The thermal derating curve for the TL7770-5IDW indicates that the device's performance will degrade as the temperature increases. The device's output current capability will decrease by 50% at 125°C, and the device will shut down at 150°C. Ensure proper thermal management, such as heat sinking and airflow, to maintain optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TL7770-5IDW Overview

Use the download button to access the TL7770-5IDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TL777, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
