A good PCB layout for the TLA2024IRUGR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, use short traces and avoid crossing digital and analog signals.
To configure the TLA2024IRUGR for a specific gain setting, use the gain select pins (G0, G1) to set the desired gain. For example, to set a gain of 1, connect G0 to VCC and G1 to GND. Refer to the datasheet for the gain configuration table.
The recommended power-up sequence for the TLA2024IRUGR is to apply VCC first, followed by the analog input signal, and then the digital supply (VDD). This ensures proper device operation and prevents latch-up.
To handle ESD protection, use ESD-sensitive handling procedures, such as grounding yourself before handling the device, using an anti-static wrist strap, and storing the device in an anti-static bag. Additionally, consider adding external ESD protection devices, such as TVS diodes, to the PCB design.
The TLA2024IRUGR has a maximum junction temperature of 150°C. Ensure reliable operation over temperature by providing adequate heat sinking, using a thermally conductive PCB material, and avoiding high-power dissipation. Refer to the datasheet for thermal resistance and power dissipation information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLA2024IRUGR Overview

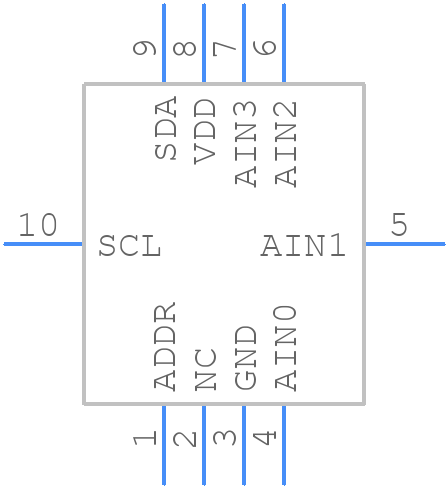

Use the download button to access the TLA2024IRUGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLA20,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
