A good PCB layout for the TLA2528IRTET involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
The gain setting for the TLA2528IRTET depends on the specific application requirements. A higher gain setting can provide better signal-to-noise ratio, but may also increase the noise floor. A lower gain setting can reduce noise, but may also reduce the signal amplitude. The optimal gain setting will depend on the specific signal levels and noise requirements of the application.
The TLA2528IRTET requires a stable power supply with minimal noise and ripple. A good power supply design should include a low-dropout regulator (LDO) or a switching regulator with a low noise output. Additionally, decoupling capacitors should be placed close to the device to filter out high-frequency noise.
The input impedance of the TLA2528IRTET can be optimized by selecting the correct input resistor values and using an input capacitor to match the impedance of the signal source. A mismatch in impedance can result in signal attenuation and distortion, so it's essential to carefully select the input components to ensure optimal signal transfer.
The TLA2528IRTET has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and thermal management. This can include using a heat sink, thermal interface material, and ensuring good airflow around the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLA2528IRTET Overview

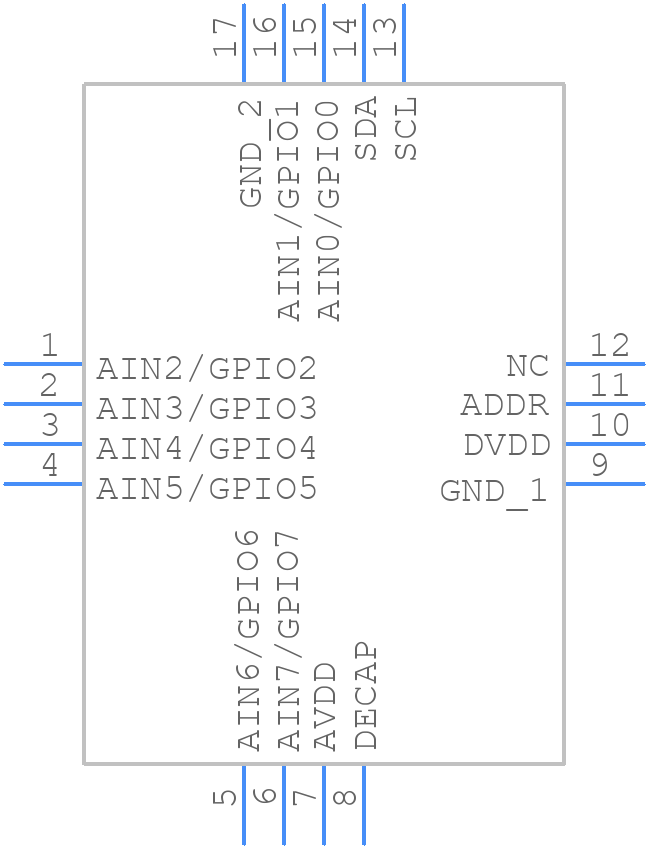

Use the download button to access the TLA2528IRTET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLA25,
or try a keyword search, such as Analog to Digital Converters
