SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Slew Rate-Min:
9.5 V/us
Slew Rate-Nom:
16 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
5 mA
Supply Voltage Limit-Max:
17 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
10000
Voltage Gain-Min:
100000
Wideband:
NO
Width:
3 mm
TLC072CDGN Frequently Asked Questions (FAQs)
The maximum power dissipation of TLC072CDGN is 670mW at 25°C free-air temperature, and it can be calculated using the formula: Pd = (TJ - TA) / θJA, where TJ is the junction temperature, TA is the ambient temperature, and θJA is the junction-to-ambient thermal resistance.
To ensure the stability of the TLC072CDGN op-amp, it is recommended to use a compensation capacitor between the output and the inverting input pins, and to avoid capacitive loads. Additionally, the op-amp should be operated within its specified frequency range and with a stable power supply.
For optimal performance, it is recommended to use a star-grounding technique, where all grounds are connected to a single point, and to keep the signal traces short and away from noise sources. Additionally, the power supply pins should be decoupled with capacitors to reduce noise and ripple.
While TLC072CDGN can be used as a comparator, it is not recommended due to its limited slew rate and bandwidth. Texas Instruments recommends using a dedicated comparator like the LM339 or LM2901 for comparator applications.
To reduce noise and EMI in TLC072CDGN circuits, it is recommended to use shielding, filtering, and grounding techniques. Additionally, the use of bypass capacitors, ferrite beads, and twisted pairs can help to reduce noise and EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC072CDGN Overview

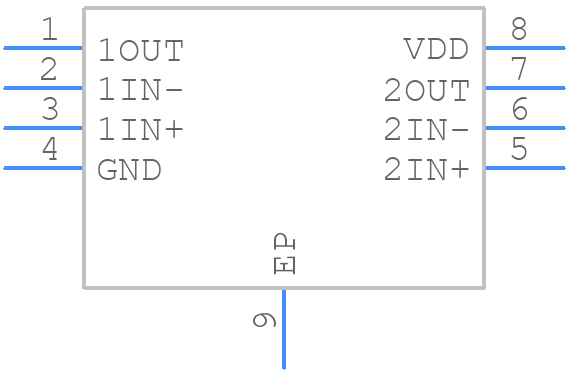

Use the download button to access the TLC072CDGN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC07,
or try a keyword search, such as Operational Amplifiers
