SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Slew Rate-Min:
9.5 V/us
Slew Rate-Nom:
16 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
5 mA
Supply Voltage Limit-Max:
17 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
10000
Voltage Gain-Min:
100000
Wideband:
NO
Width:
3 mm
TLC082IDGN Frequently Asked Questions (FAQs)
The TLC082IDGN can operate from -40°C to 125°C, but the recommended operating temperature range is -40°C to 85°C for optimal performance.
Handle the TLC082IDGN with care to avoid mechanical stress, and store it in a dry, cool place away from direct sunlight. Use anti-static packaging and follow proper ESD handling procedures to prevent damage.
The recommended power-on sequence is to apply VCC first, followed by the analog input signal, and then the clock signal. This ensures proper initialization and prevents latch-up or damage to the device.
Yes, the TLC082IDGN has a high common-mode rejection ratio (CMRR) and power supply rejection ratio (PSRR), making it suitable for use in high-noise environments. However, proper PCB layout, grounding, and shielding are still essential to minimize noise coupling.
Start by verifying the power supply voltage, clock frequency, and analog input signal. Check for proper PCB layout, decoupling, and grounding. Use an oscilloscope to monitor the output signal and verify it meets the expected specifications. Consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC082IDGN Overview

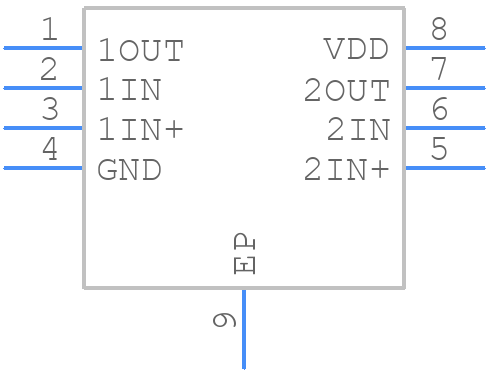

Use the download button to access the TLC082IDGN schematic symbol, PCB footprint, and 3D model.
