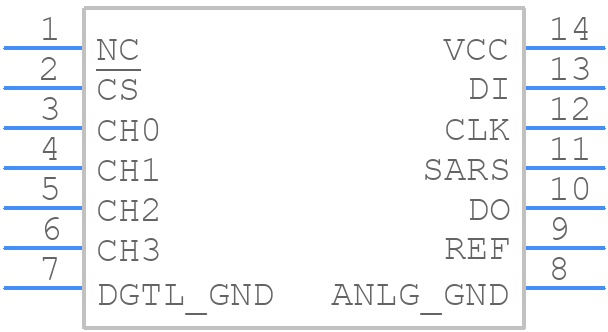

TLC0834IN - Texas Instruments

TLC0834IN Details

• Manufacturer Part Number:

  TLC0834IN

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

• Pin Count:

  14

• Country Of Origin:

  Mexico

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog Input Voltage-Max:

  5.5 V

• Conversion Time-Max:

  32 µs

• Converter Type:

  ADC, SUCCESSIVE APPROXIMATION

• JESD-30 Code:

  R-PDIP-T14

• JESD-609 Code:

  e4

• Length:

  19.305 mm

• Linearity Error-Max (EL):

  0.3906%

• Number of Analog In Channels:

  4

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  BINARY

• Output Format:

  SERIAL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP14,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Sample Rate:

  0.02 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  5.08 mm

• Supply Current-Max:

  1.25 mA

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
