The TLC0838IDW can handle clock frequencies up to 3.6 MHz. However, it's recommended to operate it at a frequency of 2.5 MHz or less to ensure reliable operation and minimize power consumption.
To ensure accurate ADC conversions, make sure to follow proper PCB layout guidelines, use a stable reference voltage, and minimize noise on the analog input pins. Additionally, use the internal clock or a high-quality external clock source, and avoid switching digital signals near the ADC inputs during conversions.
Yes, the TLC0838IDW can be used in a multiplexed ADC configuration. However, you'll need to ensure that the multiplexer is properly synchronized with the ADC's conversion cycle, and that the multiplexer's settling time is sufficient to allow for accurate conversions.
To handle overvoltage conditions, use external voltage limiting resistors or clamping diodes to prevent voltages exceeding the maximum rating of 5.5V. Additionally, consider using input protection circuits, such as voltage dividers or op-amp buffers, to further protect the ADC inputs.
The recommended power-up sequence for the TLC0838IDW is to first apply the analog supply voltage (VCC), followed by the digital supply voltage (VDD). This ensures that the internal reference voltage is stable before the digital circuitry is powered up.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC0838IDW Overview

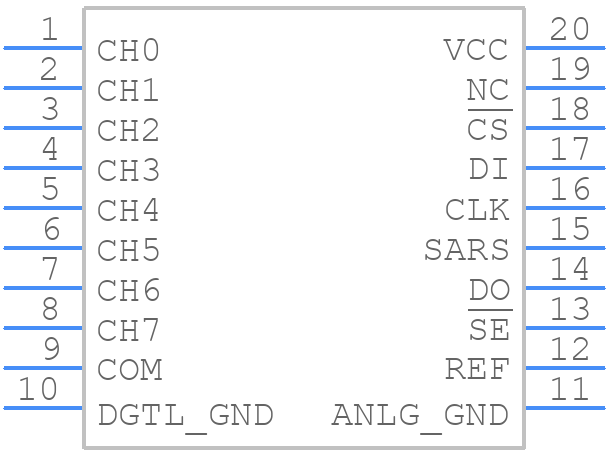

Use the download button to access the TLC0838IDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC08,
or try a keyword search, such as Analog to Digital Converters
