Mainland China, Malaysia, Mexico, Philippines, Taiwan
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Date Of Intro:
1999-06-01
Manufacturer:
Texas Instruments
YTEOL:
0
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB):
0.0007 µA
Bias Current-Max (IIB) @25C:
0.00005 µA
Common-mode Reject Ratio-Min:
80 dB
Common-mode Reject Ratio-Nom:
110 dB
Frequency Compensation:
YES
Input Offset Current-Max (IIO):
0.00005 µA
Input Offset Voltage-Max:
1400 µV
JESD-30 Code:
R-PDSO-G14
JESD-609 Code:
e4
Length:
8.65 mm
Low-Bias:
YES
Low-Offset:
NO
Micropower:
NO
Moisture Sensitivity Level:
1
Number of Functions:
4
Number of Terminals:
14
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP14,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Slew Rate-Min:
9.5 V/us
Slew Rate-Nom:
16 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
10 mA
Supply Voltage Limit-Max:
17 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
10000
Voltage Gain-Min:
100000
Wideband:
NO
Width:
3.9 mm
TLC084AIDG4 Frequently Asked Questions (FAQs)
The maximum power dissipation for the TLC084AIDG4 is 670 mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
To ensure stability, make sure to decouple the power supply with a 0.1 μF capacitor, use a gain resistor (RG) between 1 kΩ and 10 kΩ, and keep the feedback resistor (RF) between 1 kΩ and 100 kΩ. Additionally, avoid using long wires or traces that can introduce noise and oscillations.
The recommended operating voltage range for the TLC084AIDG4 is from 4.5 V to 16 V, with a maximum differential input voltage of ±5.5 V.
Yes, the TLC084AIDG4 is suitable for audio applications due to its low noise, high slew rate, and wide bandwidth. However, it's essential to consider the op-amp's noise floor, distortion, and frequency response to ensure they meet your specific audio requirements.
To protect the TLC084AIDG4 from electrostatic discharge (ESD) damage, use ESD-safe handling and storage procedures, such as using anti-static wrist straps, mats, and packaging materials. Additionally, ensure that your PCB design includes ESD protection components, such as TVS diodes or ESD arrays, to protect the op-amp from ESD events.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC084AIDG4 Overview

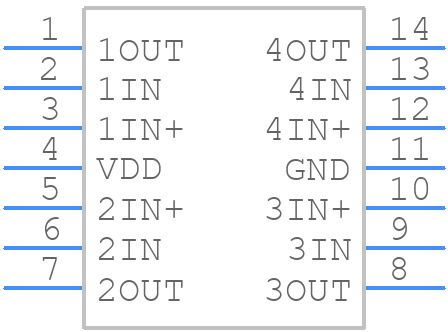

Use the download button to access the TLC084AIDG4 schematic symbol, PCB footprint, and 3D model.
