TLC139MJB - Texas Instruments

Description: Analog Comparators Quad, Micropower, LinCMOS™ Comparator 14-CDIP

Download TLC139MJB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

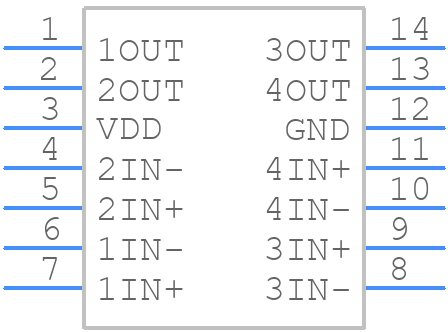

Symbol
TLC139MJB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLC139MJB - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - J0014A
click to zoom
3D Models
TLC139MJB - Texas Instruments - 3D model - Ceramic Dual-In-Line Packages - J0014A
click to zoom

TLC139MJB Details

  • Manufacturer Part Number:

    TLC139MJB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    1991-01-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.03 µA

  • Bias Current-Max (IIB) @25C:

    0.00003 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-GDIP-T14

  • JESD-609 Code:

    e0

  • Length:

    19.94 mm

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Type:

    OPEN-COLLECTOR; OPEN-DRAIN

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    2500 ns

  • Screening Level:

    38535Q/M;38534H;883B

  • Seated Height-Max:

    5.08 mm

  • Subcategory:

    Comparator

  • Supply Current-Max:

    0.08 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

TLC139MJB Frequently Asked Questions (FAQs)

  • The maximum clock frequency for TLC139MJB is 3 MHz. However, it's recommended to use a clock frequency of 2 MHz or less to ensure reliable operation.
  • The output voltage swing of TLC139MJB is dependent on the supply voltage (VCC) and the load impedance. To ensure a full output voltage swing, use a load impedance of 1 kΩ or higher and a supply voltage of 5 V or higher.
  • Yes, TLC139MJB can operate with a 3.3 V supply voltage. However, the output voltage swing may be reduced, and the device may not meet the specified accuracy and linearity. It's recommended to use a 5 V supply voltage for optimal performance.
  • TLC139MJB can be interfaced with a microcontroller using a serial interface (SPI or I2C). The microcontroller can send commands to the TLC139MJB to select the input channel, start the conversion, and read the output data. The specific interface protocol depends on the microcontroller and the application requirements.
  • The power consumption of TLC139MJB depends on the operating frequency, supply voltage, and mode of operation. In normal operation, the typical power consumption is around 15 mW. In shutdown mode, the power consumption is reduced to around 1 μW.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLC139MJB Overview

Use the download button to access the TLC139MJB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC13, or try a keyword search, such as Comparators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
