The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog input signal. This ensures proper device operation and prevents potential latch-up conditions.
The TLC1543 outputs data in a serial format, with the most significant bit (MSB) first. The output data is also binary two's complement, so the user needs to consider this when interpreting the output data.
The maximum sampling rate of the TLC1543 is 65,536 samples per second. However, this rate can be affected by the clock frequency, conversion mode, and other factors, so the user should consult the datasheet for specific details.
To minimize noise and interference, the user should use proper PCB layout techniques, such as separating analog and digital signals, using ground planes, and adding bypass capacitors. Additionally, the user should consider using shielding and filtering to reduce electromagnetic interference (EMI).
The VREF pin is used to set the reference voltage for the analog-to-digital conversion. The user can connect an external reference voltage source to this pin, or use the internal reference voltage by connecting VREF to VCC.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TLC1543IDWRG4 Overview

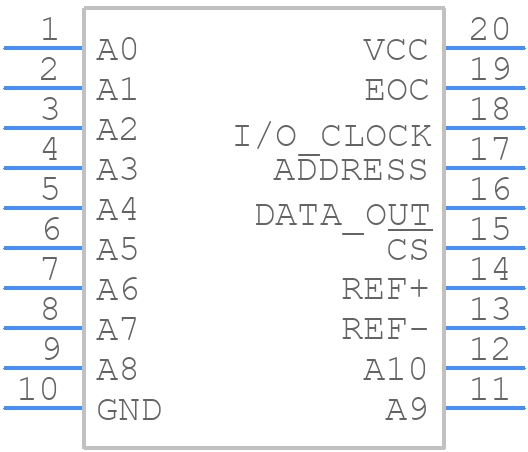

Use the download button to access the TLC1543IDWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC15,
or try a keyword search, such as Analog to Digital Converters
