Part Image

TLC1549CDG4 - Texas Instruments

Description: Texas Instruments TLC1549CDG4, 10-bit Serial ADC, 8-Pin SOIC

Download TLC1549CDG4 Model

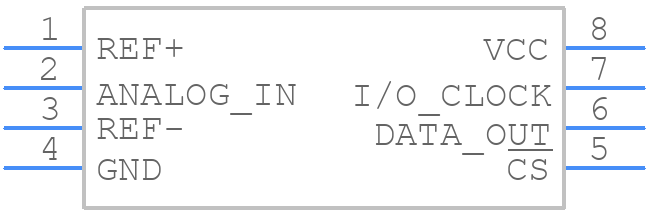

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

TLC1549CDG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom

3D Models

TLC1549CDG4 - Texas Instruments  - 3D model - Small Outline Packages - D
click to zoom

TLC1549CDG4 Details

  • Manufacturer Part Number:

    TLC1549CDG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    6.91

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    21 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    5 V

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.038 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.75 mm

  • Subcategory:

    Analog to Digital Converters

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLC1549CDG4 Overview

Use the download button to access the TLC1549CDG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC15, or try a keyword search, such as Analog to Digital Converters

Parts related to TLC1549CDG4

Showing 0 results

TLC1549CDG4 Alternates

Showing results

Image Part Number Model
Part Image TLC1549CD Texas Instruments

10-Bit, 38 kSPS ADC Serial Out, On-Chip System Clock, Single Ch. 8-SOIC -40 to 85

Part Image TLC1549ID Texas Instruments

10-Bit, 38 kSPS ADC Serial Out, On-Chip System Clock, Single Ch. 8-SOIC

Part Image TLC1549CDR Texas Instruments

10-Bit, 38 kSPS ADC Serial Out, On-Chip System Clock, Single Ch. 8-SOIC

Part Image TLC1549CDRG4 Texas Instruments

10-Bit, 38 kSPS ADC Serial Out, On-Chip System Clock, Single Ch. 8-SOIC

Part Image TLC1549IDG4 Texas Instruments

10-Bit, 38 kSPS ADC Serial Out, On-Chip System Clock, Single Ch. 8-SOIC

For a full list of alternate parts for TLC1549CDG4, check out Findchips.com
