TLC1551IDW - Texas Instruments

Description: 10-Bit, 164 kSPS ADC Parallel Out, Direct I/F to DSP/uProcessor, 10 Ch.

Download TLC1551IDW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

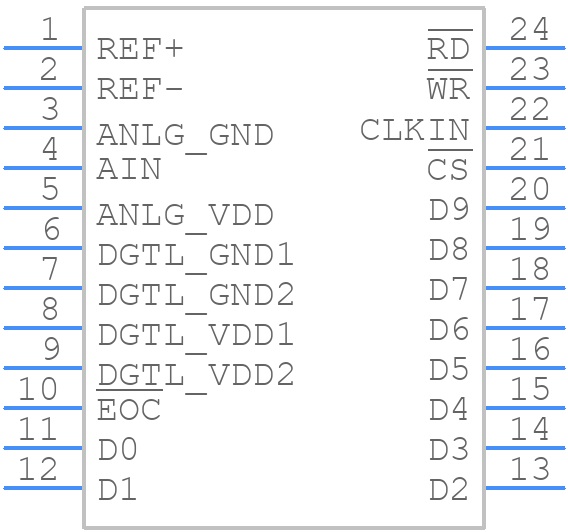

TLC1551IDW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLC1551IDW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G24)
click to zoom
3D Models
TLC1551IDW - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G24)
click to zoom

TLC1551IDW Details

  • Manufacturer Part Number:

    TLC1551IDW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    6 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    15.4 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.164 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

TLC1551IDW Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog input signal. This sequence helps prevent latch-up and ensures proper device operation.
  • When the input voltage exceeds the specified range, the TLC1551IDW may output an invalid code. To handle this, you can add external circuitry to clamp the input voltage or use a window comparator to detect out-of-range conditions and flag an error.
  • The clock frequency affects the conversion time, power consumption, and noise sensitivity of the TLC1551IDW. A higher clock frequency reduces conversion time but increases power consumption and noise sensitivity. A lower clock frequency increases conversion time but reduces power consumption and noise sensitivity.
  • To minimize noise and interference, use a low-pass filter or a shielded cable to connect the analog input signal to the TLC1551IDW. Also, ensure that the analog input signal is properly terminated and that the PCB layout is designed to minimize noise coupling.
  • To minimize digital noise and ensure reliable operation, route the digital output signals away from the analog input signals and use a separate ground plane for the digital section. Also, use a low-impedance output driver and a series resistor to reduce ringing and overshoot.
