TLC2201ACP - Texas Instruments

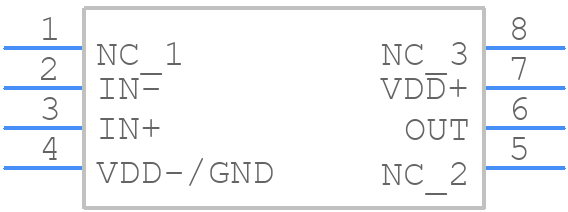

TLC2201ACP Details

• Manufacturer Part Number:

  TLC2201ACP

• Brand Name:

  Texas Instruments

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, DIP-8

• Pin Count:

  8

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.0001 µA

• Bias Current-Max (IIB) @25C:

  0.0001 µA

• Common-mode Reject Ratio-Min:

  85 dB

• Common-mode Reject Ratio-Nom:

  115 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  300 µV

• JESD-30 Code:

  R-PDIP-T8

• Length:

  9.59 mm

• Low-Bias:

  YES

• Low-Offset:

  YES

• Micropower:

  NO

• Neg Supply Voltage Limit-Max:

  -8 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Power:

  NO

• Programmable Power:

  NO

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Slew Rate-Min:

  1.5 V/us

• Slew Rate-Nom:

  2.7 V/us

• Supply Current-Max:

  1.5 mA

• Supply Voltage Limit-Max:

  8 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Unity Gain BW-Nom:

  1900

• Voltage Gain-Min:

  70000

• Wideband:

  NO

• Width:

  7.62 mm
