The maximum power dissipation of TLC2201AID is 670mW at 25°C free-air temperature, and it can be calculated using the formula: Pd = (TJ - TA) / θJA, where TJ is the junction temperature, TA is the ambient temperature, and θJA is the junction-to-ambient thermal resistance.
To ensure the stability of the TLC2201AID op-amp, it is recommended to use a compensation capacitor between the output and the inverting input pins, and to avoid capacitive loads. Additionally, the op-amp should be operated within its specified frequency range and with a stable power supply.
The input impedance of TLC2201AID is typically around 10^12 ohms in parallel with 10pF, which is relatively high and makes it suitable for high-impedance applications.
Yes, TLC2201AID can be used as a comparator, but it is not recommended due to its relatively slow slew rate and limited bandwidth. For comparator applications, it is recommended to use a dedicated comparator IC like the LM339 or LM393.
To reduce noise in TLC2201AID circuits, it is recommended to use a low-noise power supply, to minimize the length of input and output wires, and to use shielding and grounding techniques to reduce electromagnetic interference (EMI). Additionally, a noise-reducing capacitor can be added between the power supply pins.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TLC2201AID Overview

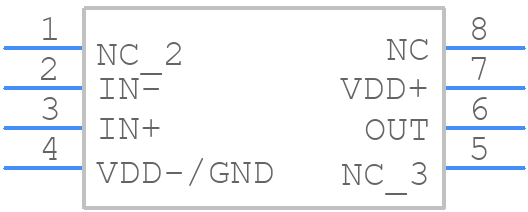

Use the download button to access the TLC2201AID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC22,
or try a keyword search, such as Operational Amplifiers
