TLC2254AID - Texas Instruments

Description: Rail-To-Rail Quad Operational Amplifier

Download TLC2254AID Model

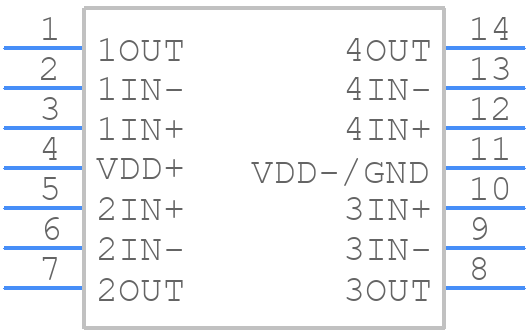

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLC2254AID - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (-R-PDSO-G14)
click to zoom
3D Models
TLC2254AID - Texas Instruments  - 3D model - Small Outline Packages - D (-R-PDSO-G14)
click to zoom

TLC2254AID Details

  • Manufacturer Part Number:

    TLC2254AID

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia, Mexico, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.001 µA

  • Bias Current-Max (IIB) @25C:

    0.00006 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    83 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.00006 µA

  • Input Offset Voltage-Max:

    850 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -8 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    0.05 V/us

  • Slew Rate-Nom:

    0.12 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage Limit-Max:

    8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    200

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    3.9 mm

TLC2254AID Frequently Asked Questions (FAQs)

  • The maximum power dissipation of TLC2254AID is 670mW at 25°C free-air temperature, and it can be calculated using the formula: Pd = (TJ - TA) / θJA, where TJ is the junction temperature, TA is the ambient temperature, and θJA is the junction-to-ambient thermal resistance.
  • The gain resistor (Rg) for TLC2254AID can be chosen based on the desired gain and bandwidth. A smaller Rg value results in higher gain and bandwidth, but also increases the noise and power consumption. A good starting point is to use Rg = 1kΩ to 10kΩ, and then adjust based on the specific application requirements.
  • The input impedance of TLC2254AID is typically around 1MΩ, but it can vary depending on the specific application and operating conditions. It's recommended to use an input resistor (Ri) in the range of 1kΩ to 10kΩ to ensure stability and minimize input bias current effects.
  • Yes, TLC2254AID can be used as a unity-gain buffer by connecting the output directly to the inverting input (pin 2) and using a gain resistor (Rg) of 0Ω. However, this configuration may not provide the best noise performance, and a non-inverting amplifier configuration with a gain of +1 may be a better option.
  • To minimize noise and EMI, it's recommended to follow good PCB layout practices, such as: keeping the input and output traces separate, using a solid ground plane, minimizing trace lengths and loops, and placing decoupling capacitors close to the device. Additionally, consider using a shielded enclosure and filtering components to reduce EMI.
