The maximum power dissipation of TLC2254AIDR is 670mW at 25°C free-air temperature, and it can be calculated using the formula: Pd = (TJ - TA) / θJA, where TJ is the junction temperature, TA is the ambient temperature, and θJA is the junction-to-ambient thermal resistance.
To ensure stability, it is recommended to use a minimum gain of 5, and to avoid capacitive loads. Additionally, a 10nF to 100nF capacitor can be added between the output and the inverting input to improve stability.
To minimize noise and ensure optimal performance, it is recommended to keep the input traces short and away from noise sources, use a ground plane, and keep the output traces away from the input traces. Additionally, decoupling capacitors should be placed close to the power pins.
Yes, TLC2254AIDR can operate in a high-temperature environment, but the maximum junction temperature should not exceed 150°C. It is recommended to derate the power dissipation accordingly to ensure reliable operation.
To handle ESD protection, it is recommended to use a human-body model (HBM) ESD protection circuit, and to follow proper handling and storage procedures to prevent ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC2254AIDR Overview

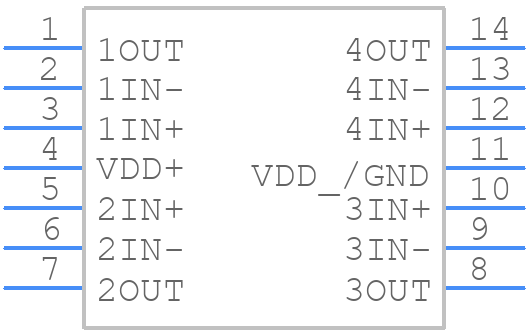

Use the download button to access the TLC2254AIDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC22,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
