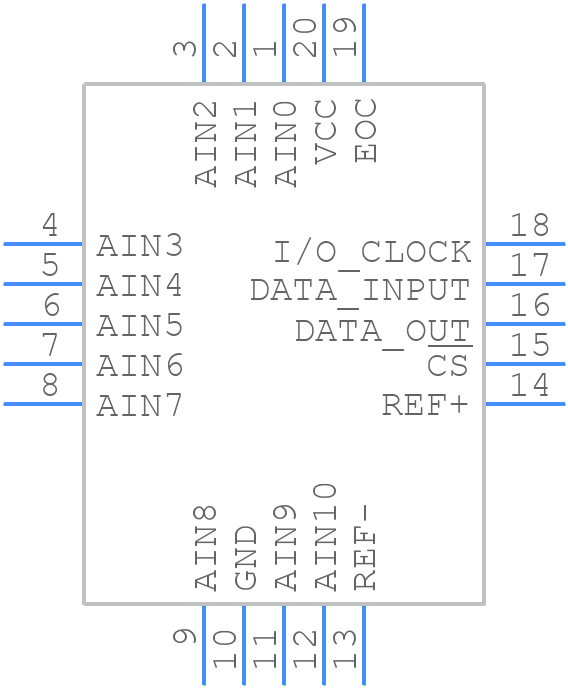

TLC2543CFN - Texas Instruments

TLC2543CFN Details

• Manufacturer Part Number:

  TLC2543CFN

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QLCC

• Pin Count:

  20

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog Input Voltage-Max:

  5.5 V

• Analog Input Voltage-Min:

  4.5 V

• Conversion Time-Max:

  10 µs

• Converter Type:

  ADC, SUCCESSIVE APPROXIMATION

• JESD-30 Code:

  S-PQCC-J20

• JESD-609 Code:

  e3

• Length:

  8.965 mm

• Linearity Error-Max (EL):

  0.0244%

• Moisture Sensitivity Level:

  1

• Number of Analog In Channels:

  11

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  70 °C

• Output Bit Code:

  BINARY, 2S COMPLEMENT BINARY

• Output Format:

  SERIAL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC20,.4SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  0.066 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  4.57 mm

• Supply Current-Max:

  2.5 mA

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  8.965 mm
