Texas Instruments recommends a star-connected layout for the analog and digital grounds, with separate ground planes for analog and digital circuits. Additionally, it's recommended to keep the analog input traces short and away from digital traces to minimize noise coupling.
To handle high-frequency noise, use a low-pass filter (e.g., RC filter) at the analog input, and consider using a ferrite bead or a common-mode choke to filter out high-frequency noise. Additionally, ensure that the analog input traces are properly terminated and shielded.
The TLC2551ID can achieve a maximum sampling rate of 400 kSPS (kilosamples per second) in its fastest mode. However, the actual sampling rate may be limited by the system's clock frequency, analog input bandwidth, and other factors.
To ensure accurate conversions, ensure that the analog input voltage is within the specified range, and that the reference voltage is stable and accurate. Additionally, calibrate the ADC using the built-in calibration feature, and consider using an external reference voltage source for improved accuracy.
Yes, the TLC2551ID can be used in a multi-channel application by using multiple devices or by using a multiplexer to switch between multiple analog input channels. However, ensure that the system's clock frequency and sampling rate are sufficient to handle the required number of channels.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC2551ID Overview

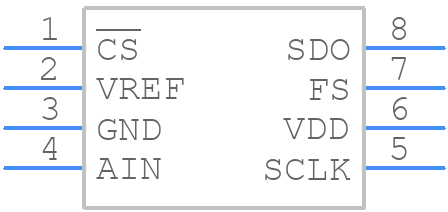

Use the download button to access the TLC2551ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC25,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
