TLC2551IDR - Texas Instruments

Description: Analog to Digital Converters - ADC 12-Bit 400 kSPS Serial Out

Download TLC2551IDR Model

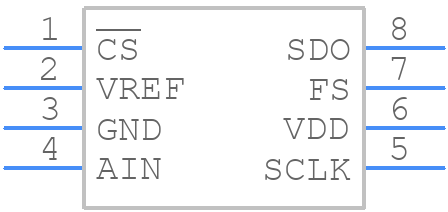

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLC2551IDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
TLC2551IDR - Texas Instruments  - 3D model - Small Outline Packages - D0008A
click to zoom

TLC2551IDR Details

  • Manufacturer Part Number:

    TLC2551IDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    2.77 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.4 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TLC2551IDR Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with TLC2551IDR is 40 MHz. However, it's recommended to use a clock frequency of 20 MHz or less to ensure reliable operation.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence in the datasheet, which includes applying VCC before applying any input signals. Also, ensure that the reset pin (RST) is properly tied to VCC through a pull-up resistor.
  • To minimize noise and ensure reliable operation, it's recommended to follow good PCB layout and routing practices, such as keeping analog and digital signals separate, using ground planes, and minimizing trace lengths and loops. Additionally, place decoupling capacitors close to the TLC2551IDR's power pins and use a low-ESR capacitor for the analog power supply.
  • The TLC2551IDR has a limited output current and voltage capability. To handle this, ensure that the output current does not exceed 20 mA per channel, and the output voltage does not exceed the supply voltage (VCC). Also, consider using external buffers or amplifiers if higher output currents or voltages are required.
  • The recommended method for programming the TLC2551IDR's internal registers is through the serial interface (SPI) using a microcontroller or other digital interface. Use the datasheet's programming guide and register descriptions to ensure correct programming and configuration.
