TLC2552ID - Texas Instruments

Description: 12-Bit, 400 kSPS ADC, Serial Out, TMS320 Compatible (up to 10MHz), Dual Ch. Auto Sweep

Download TLC2552ID Model

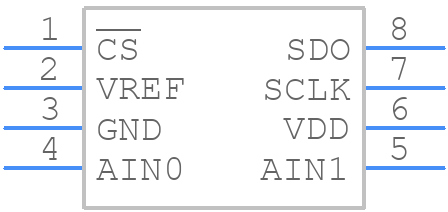

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLC2552ID - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
TLC2552ID - Texas Instruments  - 3D model - Small Outline Packages - D
click to zoom

TLC2552ID Details

  • Manufacturer Part Number:

    TLC2552ID

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.5 V

  • Conversion Time-Max:

    2.77 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.4 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TLC2552ID Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a star-connected layout for the TLC2552ID, with the device at the center and the analog and digital grounds connected to it. The analog and digital power supplies should be separated and decoupled with capacitors. Additionally, the layout should minimize noise coupling between the analog and digital sections.
  • To ensure accurate ADC conversions, the TLC2552ID requires a stable reference voltage, a clean analog power supply, and a low-noise analog input signal. The analog input signal should be filtered and buffered if necessary, and the reference voltage should be decoupled with a capacitor. Additionally, the ADC clock frequency should be set according to the datasheet recommendations.
  • Yes, the TLC2552ID can be used in a multiplexed configuration, but it requires careful consideration of the multiplexer's settling time, the ADC's conversion time, and the overall system's noise budget. The multiplexer's control signals should be synchronized with the ADC's conversion cycle, and the system should be designed to minimize noise and crosstalk between channels.
  • The TLC2552ID has built-in overvoltage and undervoltage protection, but it's still important to design the system to prevent these conditions from occurring. The analog input signal should be limited to the recommended voltage range, and the power supplies should be designed to prevent overvoltage and undervoltage conditions. Additionally, the system should be designed to detect and respond to these conditions if they occur.
  • The recommended clock frequency for the TLC2552ID depends on the specific application and the desired ADC conversion rate. The datasheet recommends a clock frequency between 1.5 MHz and 4 MHz, but the optimal frequency may vary depending on the system's noise budget and the desired conversion rate.
