A good layout and routing practice is to keep the analog and digital grounds separate, use a star-ground configuration, and keep the sensitive analog signals away from the digital signals. Also, use a solid ground plane and avoid routing digital signals under the device.
Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close as possible to the device's power pins. Add additional decoupling capacitors (e.g., 100nF ceramic) near the device's analog and digital power pins. Ensure the power supply is clean and regulated, and use a low-dropout regulator if necessary.
The recommended clock frequency is between 10 kHz to 50 kHz. The clock signal should be a clean, low-jitter signal with a rise and fall time of less than 10 ns. Use a clock source with a low phase noise and a high signal-to-noise ratio.
Consult the datasheet and application notes for guidance on optimizing the device's performance for your specific application. Consider factors such as input signal range, gain, and bandwidth, as well as the device's noise performance and power consumption.
Common pitfalls to avoid include: not following proper layout and routing guidelines, not providing adequate power supply decoupling, not using a clean and regulated clock signal, and not optimizing the device's performance for the specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC2578IDW Overview

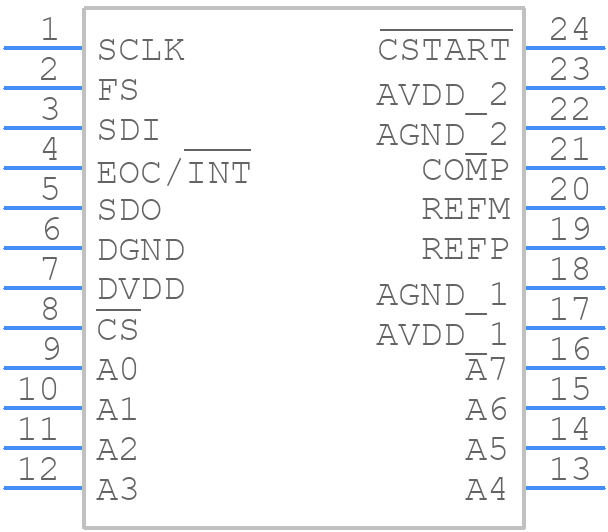

Use the download button to access the TLC2578IDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC25,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
