TLC25M2CDR - Texas Instruments

Description: TLC25M2CDR

Download TLC25M2CDR Model

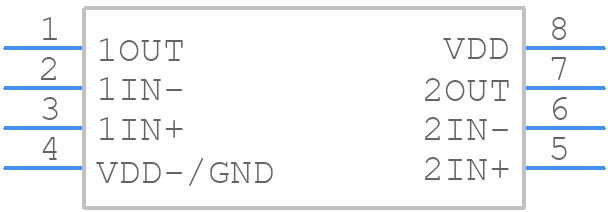

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLC25M2CDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
TLC25M2CDR - Texas Instruments  - 3D model - Small Outline Packages - D
click to zoom

TLC25M2CDR Details

  • Manufacturer Part Number:

    TLC25M2CDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Country Of Origin:

    Mexico, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00006 µA

  • Bias Current-Max (IIB) @25C:

    0.00006 µA

  • Common-mode Reject Ratio-Min:

    65 dB

  • Common-mode Reject Ratio-Nom:

    91 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.00006 µA

  • Input Offset Voltage-Max:

    12000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.43 V/us

  • Supply Current-Max:

    0.8 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    525

  • Voltage Gain-Min:

    25000

  • Wideband:

    NO

  • Width:

    3.9 mm

TLC25M2CDR Frequently Asked Questions (FAQs)

  • The TLC25M2CDR can operate up to 2.7 MHz, but it's recommended to operate it at 1.5 MHz or lower for optimal performance and to ensure stability.
  • To minimize noise and ensure signal integrity, it's essential to follow proper PCB layout guidelines, such as keeping analog and digital traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, use a low-impedance path for the output signal and avoid routing signals under the device.
  • The recommended power-on sequence for TLC25M2CDR is to apply VCC first, followed by VREF, and then the input signal. This sequence helps prevent latch-up and ensures proper device operation.
  • The TLC25M2CDR can source or sink up to 20 mA of output current. When driving heavy loads, it's essential to use an output buffer or a dedicated amplifier to ensure the device can handle the required current. Additionally, consider using a current-limiting resistor to prevent damage to the device.
  • The TLC25M2CDR's performance and accuracy can be affected by temperature. The device's offset voltage, gain, and linearity can vary with temperature. It's essential to consider the operating temperature range and potential temperature-related errors when designing with TLC25M2CDR.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLC25M2CDR Overview

Use the download button to access the TLC25M2CDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC25, or try a keyword search, such as Operational Amplifiers
