TLC27L9IDR - Texas Instruments

Description: Precision Amplifiers Quad Precision Sngl Supply Micropower

Download TLC27L9IDR Model

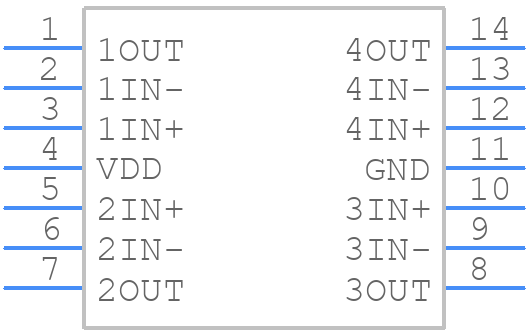

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLC27L9IDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (-R-PDSO-G14)
click to zoom
3D Models
TLC27L9IDR - Texas Instruments  - 3D model - Small Outline Packages - D (-R-PDSO-G14)
click to zoom

TLC27L9IDR Details

  • Manufacturer Part Number:

    TLC27L9IDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    1989-03-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.002 µA

  • Bias Current-Max (IIB) @25C:

    0.00006 µA

  • Common-mode Reject Ratio-Min:

    65 dB

  • Common-mode Reject Ratio-Nom:

    94 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    900 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    0.02 V/us

  • Slew Rate-Nom:

    0.03 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    0.172 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    85

  • Voltage Gain-Min:

    50000

  • Wideband:

    NO

  • Width:

    3.9 mm

TLC27L9IDR Frequently Asked Questions (FAQs)

  • The TLC27L9IDR can operate from -40°C to 125°C, but the device's performance may degrade at extreme temperatures. It's recommended to operate within the specified temperature range for optimal performance.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source between 4.5V and 16V, and the GND pin to a solid ground. Also, ensure that the input voltage (VIN) is within the specified range (VCC - 1.5V to VCC + 0.3V) and that the output voltage (VOUT) is within the specified range (VCC - 1.5V to VCC + 0.3V).
  • To minimize noise and ensure optimal performance, it's recommended to follow a star-grounding layout, keep the input and output traces short and separate, and avoid running digital signals near the TLC27L9IDR's analog signals. Also, use a solid ground plane and decouple the VCC pin with a 0.1uF capacitor.
  • The TLC27L9IDR has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and avoid touching the device's pins or exposed metal surfaces.
  • To ensure proper operation, power up the TLC27L9IDR in the following sequence: 1) Apply VCC, 2) Apply VIN, and 3) Apply any digital input signals. Power down in the reverse sequence to prevent latch-up or other issues.
