Mainland China, Malaysia, Mexico, Taiwan, Thailand
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Texas Instruments
YTEOL:
15
Amplifier Type:
OPERATIONAL AMPLIFIER
Architecture:
VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB):
0.002 µA
Bias Current-Max (IIB) @25C:
0.00006 µA
Common-mode Reject Ratio-Min:
65 dB
Common-mode Reject Ratio-Nom:
91 dB
Frequency Compensation:
YES
Input Offset Voltage-Max:
10000 µV
JESD-30 Code:
R-PDSO-G14
JESD-609 Code:
e4
Length:
5 mm
Low-Bias:
YES
Low-Offset:
NO
Micropower:
YES
Moisture Sensitivity Level:
1
Number of Functions:
4
Number of Terminals:
14
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP14,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power:
NO
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Slew Rate-Nom:
0.46 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
1.12 mA
Supply Voltage Limit-Max:
18 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
525
Voltage Gain-Min:
15000
Wideband:
NO
Width:
4.4 mm
TLC27M4IPWR Frequently Asked Questions (FAQs)
The maximum power dissipation of TLC27M4IPWR is 670mW at 25°C free-air temperature, and it can be calculated using the formula: Pd = (TJ - TA) / θJA, where TJ is the junction temperature, TA is the ambient temperature, and θJA is the junction-to-ambient thermal resistance.
To ensure the stability of the TLC27M4IPWR op-amp, it is recommended to use a compensation capacitor between the output and the inverting input pins, and to avoid capacitive loads. Additionally, the op-amp should be operated within its specified frequency range and with a stable power supply.
For optimal performance, it is recommended to use a star-grounding technique, where all ground connections are connected to a single point, and to keep the input and output traces separate to minimize noise coupling. Additionally, the power supply decoupling capacitors should be placed close to the op-amp.
To handle ESD protection for TLC27M4IPWR, it is recommended to use ESD protection devices such as TVS diodes or ESD arrays at the input and output pins, and to follow proper handling and storage procedures to prevent ESD damage.
The recommended operating voltage range for TLC27M4IPWR is 4.5V to 16V, with a maximum voltage of 18V. Operating the op-amp outside of this range may affect its performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC27M4IPWR Overview

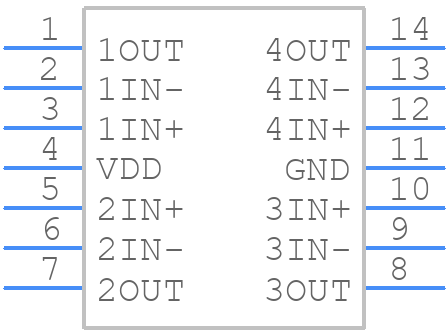

Use the download button to access the TLC27M4IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC27,
or try a keyword search, such as Operational Amplifiers
