TLC320AC02IFN - Texas Instruments

Description: Single Channel Codec-Bandwidth Independent of Sampling Rate

Download TLC320AC02IFN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

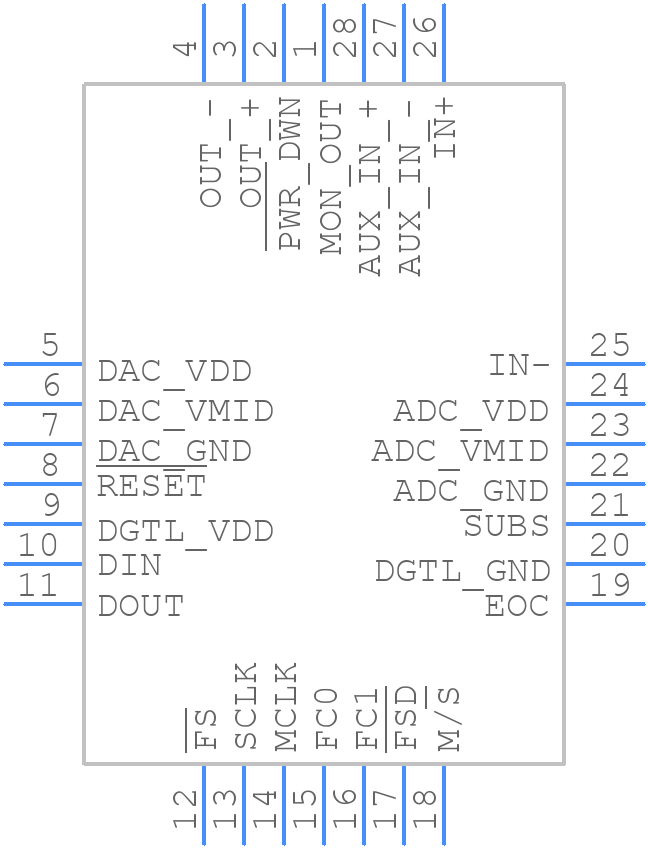

TLC320AC02IFN - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLC320AC02IFN - Texas Instruments PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - FN0028A
click to zoom
3D Models
TLC320AC02IFN - Texas Instruments - 3D model - Plastic Leaded Chip Carrier - FN0028A
click to zoom

TLC320AC02IFN Details

  • Manufacturer Part Number:

    TLC320AC02IFN

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QLCC

  • Pin Count:

    28

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO REQUIRE 5V SUPPLY

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-J28

  • JESD-609 Code:

    e4

  • Length:

    11.505 mm

  • Moisture Sensitivity Level:

    4

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC28,.5SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11.505 mm

TLC320AC02IFN Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the analog input signals. This ensures proper device operation and prevents latch-up.
  • Optimization depends on the specific application requirements. Consider factors such as input signal frequency, amplitude, and noise levels. Adjust the ADC's gain, offset, and sampling rate accordingly. Consult the datasheet and application notes for guidance.
  • The maximum clock frequency for the TLC320AC02IFN's serial interface is 10 MHz. Exceeding this frequency may result in data corruption or device malfunction.
  • The TLC320AC02IFN outputs 14-bit or 16-bit digital data in two's complement format. Ensure your microcontroller or digital signal processor can handle this format, and consider using a FIFO or buffer to manage data transfer.
  • The TLC320AC02IFN's typical power consumption is 15 mW at 3.3 V and 1.5 mW at 1.8 V. To minimize power consumption, consider using the device's power-down mode, reducing the clock frequency, or using a lower supply voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLC320AC02IFN Overview

Use the download button to access the TLC320AC02IFN schematic symbol, PCB footprint, and 3D model.
