TLC320AD77CDB - Texas Instruments

Description: Texas Instruments, TLC320AD77CDB 24bit- Audio Codec 28-Pin SSOP

Download TLC320AD77CDB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

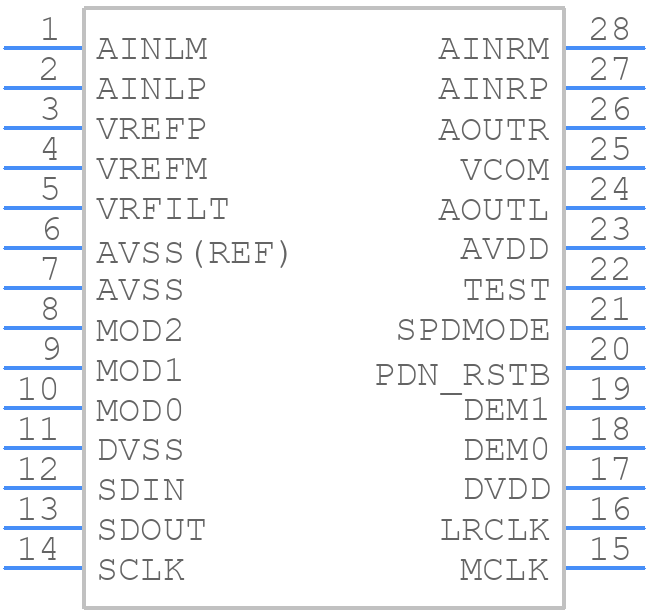

TLC320AD77CDB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLC320AD77CDB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G28)_2021
click to zoom
3D Models
TLC320AD77CDB - Texas Instruments - 3D model - Small Outline Packages - DB (R-PDSO-G28)_2021
click to zoom

TLC320AD77CDB Details

  • Manufacturer Part Number:

    TLC320AD77CDB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    GREEN, PLASTIC, SSOP-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

TLC320AD77CDB Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the analog input signal. This ensures proper device operation and prevents damage.
  • Optimization depends on the specific application. However, general tips include selecting the correct gain setting, adjusting the input impedance, and using a suitable analog-to-digital converter (ADC) for the desired resolution and sampling rate.
  • The maximum input signal amplitude is ±2.5V, but it's recommended to keep the input signal within ±2V to ensure optimal performance and prevent distortion.
  • Yes, the TLC320AD77CDB can be used with a single-ended input signal. However, it's recommended to use a differential input signal to take advantage of the device's common-mode rejection capabilities.
  • To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering as necessary. Additionally, ensure that the device is properly decoupled and bypassed.
