The TLC339MDG4 can operate up to 40 MHz, but the maximum frequency is dependent on the specific application and the output load. It's recommended to check the device's settling time and propagation delay to determine the maximum operating frequency for a specific design.
To ensure proper biasing for single-supply operation, the TLC339MDG4 requires a minimum supply voltage of 4.5V and a maximum supply voltage of 16V. The input common-mode voltage range is from VCC- to VCC+, and the output voltage swing is from VCC- to VCC+. It's also important to ensure that the input signals are within the common-mode voltage range.
To minimize noise and EMI, it's recommended to follow good PCB layout and routing practices, such as keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a low-impedance power supply and to avoid running high-frequency signals near the device.
The TLC339MDG4 has internal input overvoltage protection, which can withstand input voltages up to 18V without damage. However, it's still recommended to use external protection devices, such as voltage-limiting resistors or diodes, to prevent input voltages from exceeding the maximum rating. Additionally, it's recommended to ensure that the input signals are within the specified common-mode voltage range.
The TLC339MDG4 has a human-body model (HBM) ESD rating of 2 kV and a charged-device model (CDM) ESD rating of 1 kV. To protect the device from ESD damage, it's recommended to follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and bags. Additionally, it's recommended to use ESD protection devices, such as TVS diodes, on the input and output pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC339MDG4 Overview

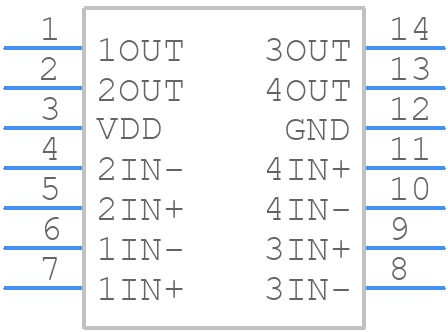

Use the download button to access the TLC339MDG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC33,
or try a keyword search, such as Comparators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
