Texas Instruments provides a layout and routing guide in the TLC3544IPW datasheet, which recommends keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and loops. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
To minimize jitter, it's recommended to use a high-quality clock source with a low jitter specification. The clock input should be terminated with a 50-ohm resistor to match the impedance of the clock source. Additionally, the clock signal should be routed as a differential pair to minimize noise and ensure reliable operation.
The recommended power-up sequence for the TLC3544IPW is to first apply the analog power supply (AVCC) followed by the digital power supply (DVCC). The clock input should be applied last, after both power supplies are stable. This ensures that the device powers up in a controlled manner and minimizes the risk of latch-up or other issues.
To optimize the TLC3544IPW's performance for a specific application, it's recommended to consult the device's datasheet and application notes. For high-speed data acquisition, the device's clock frequency and sampling rate can be optimized to achieve the required throughput. For low-power operation, the device's power-down modes and clock frequency can be optimized to minimize power consumption.
Common pitfalls to avoid when designing with the TLC3544IPW include incorrect power-up sequencing, inadequate decoupling, and poor layout and routing. To troubleshoot issues, it's recommended to consult the device's datasheet and application notes, and to use tools such as oscilloscopes and logic analyzers to debug the design. Additionally, Texas Instruments provides a range of support resources, including online forums and technical support teams, to help engineers troubleshoot and resolve issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC3544IPW Overview

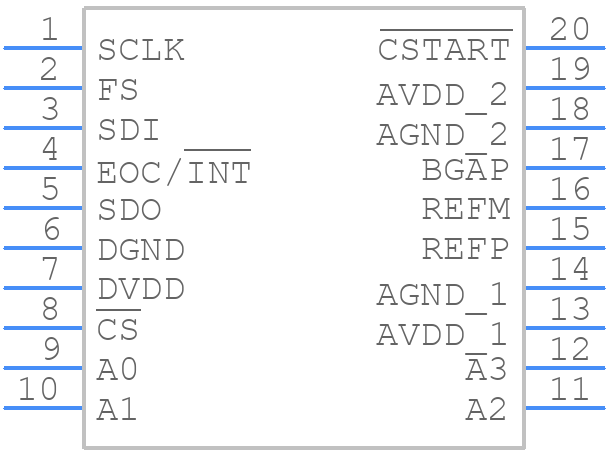

Use the download button to access the TLC3544IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC35,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
