Texas Instruments provides a recommended layout and routing guide in the TLC3548CPWR datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and avoiding vias and right-angle turns near the device.
The TLC3548CPWR requires a high-speed clock input, which can be challenging to handle. It's recommended to use a clock buffer or a dedicated clock generator, and to ensure that the clock signal is properly terminated and routed to minimize jitter and noise.
The TLC3548CPWR has an operating temperature range of -40°C to 125°C, but it's important to note that the device's performance may degrade at higher temperatures. It's recommended to ensure good thermal management and to follow the recommended operating conditions to ensure reliable operation.
The TLC3548CPWR can be programmed using a serial interface, such as SPI or I2C. Texas Instruments provides a programming guide and software tools to help with the programming process. It's also important to follow the recommended programming sequence and to ensure that the device is properly powered and configured before programming.
The power consumption of the TLC3548CPWR depends on the operating frequency, voltage, and other factors. According to the datasheet, the typical power consumption is around 1.5W at 100MHz, but it can be higher or lower depending on the specific application. It's recommended to consult the datasheet and to perform power consumption calculations based on the specific use case.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC3548CPWR Overview

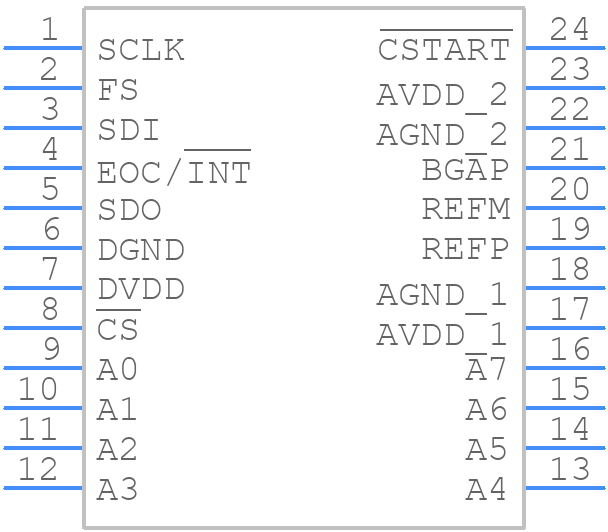

Use the download button to access the TLC3548CPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC35,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
