Texas Instruments provides a recommended layout and routing guide in the TLC3548IDWR datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and avoiding vias and right-angle turns.
The TLC3548IDWR requires a high-speed clock input, which can be challenging to handle. It's recommended to use a clock buffer or a dedicated clock generator, and to ensure that the clock signal is properly terminated and routed to minimize jitter and noise.
The TLC3548IDWR has an operating temperature range of -40°C to 125°C, but it's important to note that the device's performance may degrade at higher temperatures. It's recommended to ensure good thermal management and to follow the recommended operating conditions to ensure reliable operation.
The TLC3548IDWR is a programmable device, and it can be programmed using a variety of methods, including through the use of a serial interface or through the use of a programming adapter. Texas Instruments provides software tools and documentation to help with the programming process.
The power consumption of the TLC3548IDWR depends on the specific application and operating conditions. However, the device has a typical power consumption of around 100 mW, and it's recommended to ensure that the power supply can provide sufficient current to meet the device's power requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC3548IDWR Overview

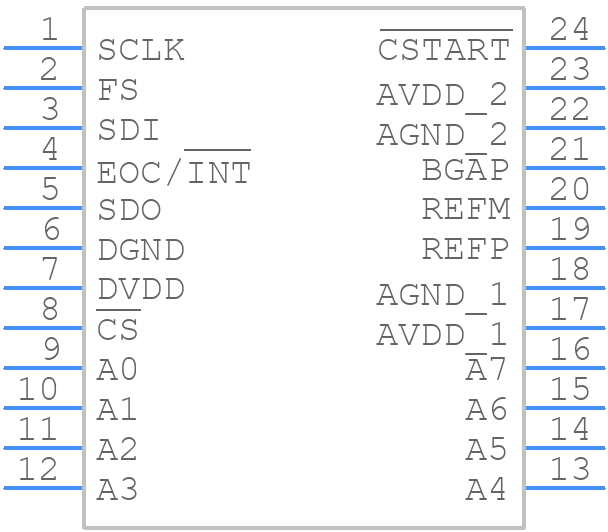

Use the download button to access the TLC3548IDWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC35,
or try a keyword search, such as Analog to Digital Converters
