Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The input and output traces should be kept short and away from noise sources. A good layout and routing can help reduce noise and improve the overall performance of the device.
The TLC3574IDW has a thermal pad that should be connected to a solid ground plane to dissipate heat. A thermal interface material (TIM) can be used to improve the thermal conductivity between the device and the PCB. Additionally, the device should be placed in a well-ventilated area to prevent overheating.
The recommended power-up sequence is to apply the analog power supply (AVCC) first, followed by the digital power supply (DVCC). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent any potential latch-up conditions.
The TLC3574IDW has a built-in noise filter, but additional filtering may be necessary depending on the application. A low-pass filter can be used to filter out high-frequency noise, and a ferrite bead can be used to filter out electromagnetic interference (EMI). Additionally, a good PCB layout and routing can help to reduce noise and interference.
The recommended clock frequency for the TLC3574IDW is between 10 kHz and 100 kHz. However, the device can operate at frequencies up to 200 kHz, depending on the application requirements. A higher clock frequency can improve the device's performance, but it also increases the power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC3574IDW Overview

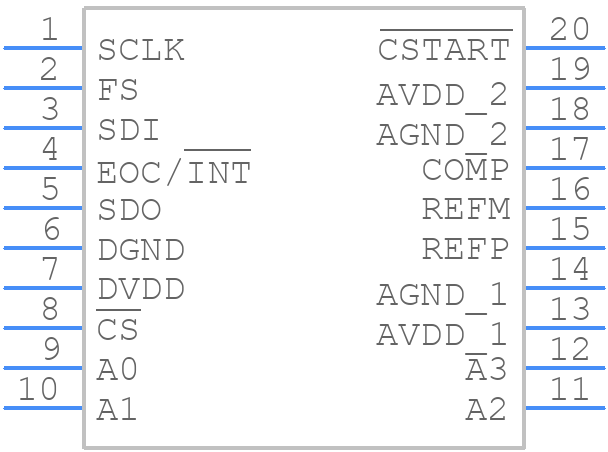

Use the download button to access the TLC3574IDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC35,
or try a keyword search, such as Analog to Digital Converters
