A good layout and routing practice is to keep the analog and digital grounds separate, use a star-ground configuration, and keep the input and output traces short and away from each other. Additionally, use a solid ground plane and avoid routing signals under the device.
Monitor the power supply voltage to ensure it is within the recommended range of 2.7V to 5.5V. Also, ensure the device is operated within the recommended temperature range of -40°C to 125°C. Use thermal management techniques such as heat sinks or thermal interfaces to prevent overheating.
Common pitfalls include not following proper layout and routing guidelines, not providing adequate decoupling, and not considering the device's power-on reset behavior. To troubleshoot issues, use tools such as oscilloscopes and logic analyzers to identify signal integrity issues, and consult the datasheet and application notes for guidance.
Consult the datasheet and application notes for guidance on optimizing the device's performance for specific applications. Use simulation tools such as SPICE models to simulate the device's behavior and optimize component values. Additionally, consider using the device's built-in features such as gain and bandwidth adjustment to optimize performance.
The TLC3574IPW is commonly used in audio and signal processing applications, such as audio amplifiers, filters, and analog-to-digital converters. To adapt the device to your specific use case, consult the datasheet and application notes for guidance, and consider using simulation tools to model the device's behavior in your specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC3574IPW Overview

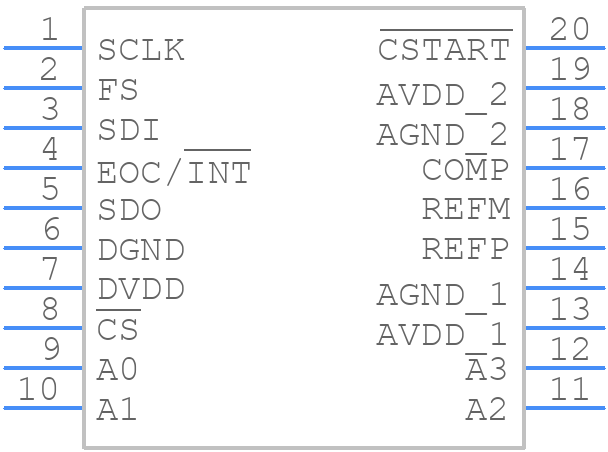

Use the download button to access the TLC3574IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC35,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
