A good layout and routing practice is to keep the analog and digital grounds separate, use a star-ground configuration, and keep the input and output traces short and away from each other. Additionally, use a solid ground plane and avoid routing signals under the device.
Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close as possible to the device's power pins. Add additional decoupling capacitors (e.g., 100nF ceramic) near the device's power pins. Ensure the power supply is clean and regulated, and use a low-dropout regulator if necessary.
The recommended input impedance is 1kΩ to 10kΩ, and the recommended output impedance is 1kΩ to 100kΩ. However, the optimal impedance values may vary depending on the specific application and signal frequencies.
Use a thermal pad or heat sink to dissipate heat. Ensure good airflow around the device, and avoid blocking airflow with nearby components. Consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
Common pitfalls include: not following proper layout and routing guidelines, inadequate power supply decoupling, not accounting for thermal considerations, and not properly terminating the output stage. Additionally, ensure the device is operated within its recommended operating conditions and specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC3578IDWR Overview

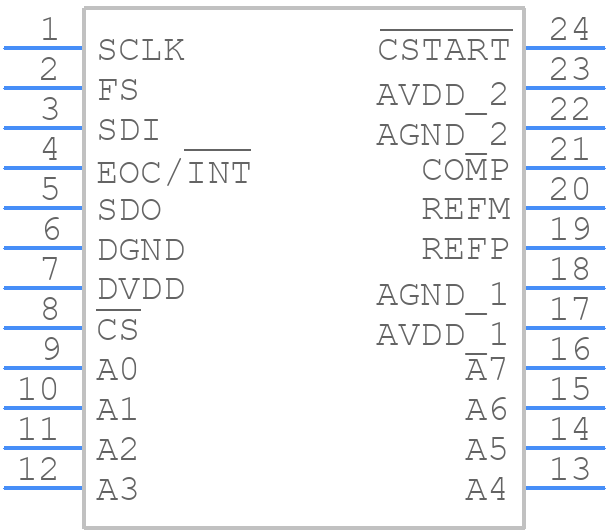

Use the download button to access the TLC3578IDWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC35,
or try a keyword search, such as Analog to Digital Converters
