Texas Instruments recommends a star-ground configuration, with the analog and digital grounds separated and connected at a single point. Additionally, keep the input and output traces short and away from noise sources, and use a solid ground plane to reduce electromagnetic interference (EMI).
The TLC4502AIDR has a built-in output current limiting of 150mA and foldback current limiting of 50mA. To handle these limits, ensure that the output current is within the specified range, and use external current limiting resistors if necessary. Also, consider using a current sense resistor to monitor the output current and prevent overheating.
Texas Instruments recommends powering up the VCC pin first, followed by the input voltage (VIN). When powering down, reverse the sequence: disconnect VIN first, then VCC. This ensures that the internal voltage regulators are properly shut down and prevents damage to the device.
The TLC4502AIDR has a temperature coefficient of ±0.5% per °C. To compensate for this, use a temperature-compensated voltage reference, such as the TL431, and adjust the feedback resistors accordingly. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and adjust the output voltage accordingly.
Texas Instruments recommends using a low-ESR ceramic capacitor with a value of 1-10μF, depending on the input voltage and output current requirements. A higher-value capacitor can help reduce input voltage ripple and improve overall system stability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC4502AIDR Overview

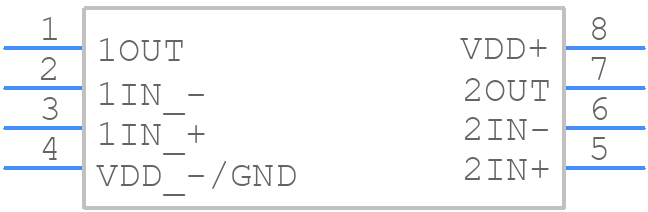

Use the download button to access the TLC4502AIDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC45,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
