TLC5510INS - Texas Instruments

Description: 8-Bit, 20-MSPS Analog-to-Digital Converter (ADC) with 2-Vpp input

Download TLC5510INS Model

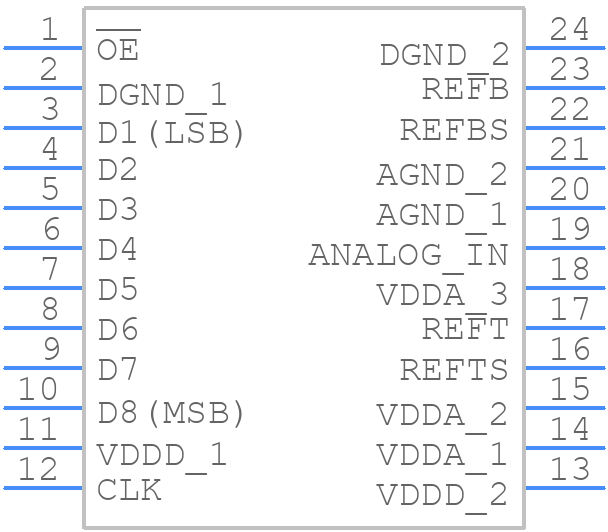

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

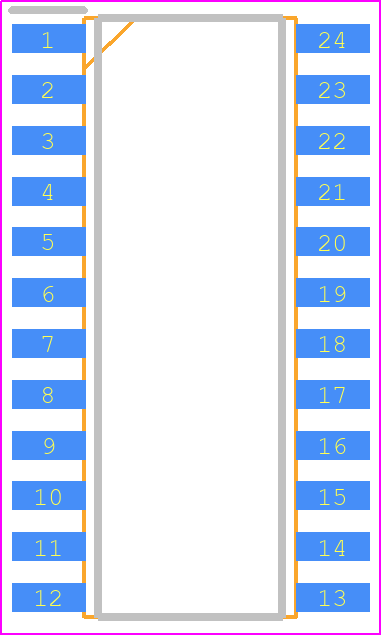

TLC5510INS - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - NS (R-PDSO-G24)
click to zoom
3D Models
TLC5510INS - Texas Instruments  - 3D model - Small Outline Packages - NS (R-PDSO-G24)
click to zoom

TLC5510INS Details

  • Manufacturer Part Number:

    TLC5510INS

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-24

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 2

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    0.05 µs

  • Converter Type:

    ADC, FLASH METHOD

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    15 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    20 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    27 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

TLC5510INS Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the TLC5510INS involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the analog power supply. Additionally, it's recommended to use a solid ground plane and to keep the input and output traces short and away from each other.
  • To ensure proper biasing and configuration, refer to the datasheet's application circuit and adjust the values of the external components (R1, R2, R3, and C1) according to your specific application's requirements. Also, make sure to follow the recommended operating conditions and voltage ranges for the device.
  • When selecting the external components, consider the desired gain, bandwidth, and frequency response of your application. Choose components with low tolerance values and ensure that the resistor values are within the recommended range. Also, select a capacitor with a suitable value and voltage rating for the application.
  • To troubleshoot common issues, start by verifying the power supply voltage and ensuring that it's within the recommended range. Check the input and output signals for any signs of oscillation or instability. Also, verify that the external components are properly selected and connected. If the issue persists, consult the datasheet's troubleshooting section or contact Texas Instruments' support team.
  • The TLC5510INS has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conduction between the device and the PCB, and provide adequate heat sinking if necessary. Also, follow the recommended operating conditions and avoid exceeding the maximum power dissipation.
