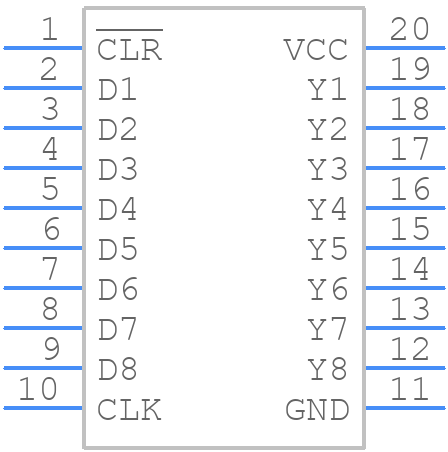

TLC59213AIPW - Texas Instruments

TLC59213AIPW Details

• Manufacturer Part Number:

  TLC59213AIPW

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  TSSOP-20

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Differential Output:

  NO

• Driver Number of Bits:

  8

• High Level Input Current-Max:

  0.000001 A

• Input Characteristics:

  STANDARD

• Interface IC Type:

  LINE DRIVER

• Interface Standard:

  GENERAL PURPOSE

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e4

• Length:

  6.5 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  8

• Number of Functions:

  8

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.2 mm

• Supply Current-Max:

  13 mA

• Supply Voltage-Max:

  13.2 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  12 V

• Supply Voltage1-Max:

  13.2 V

• Supply Voltage1-Min:

  4.5 V

• Supply Voltage1-Nom:

  12 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transmit Delay-Max:

  250 ns

• Width:

  4.4 mm
