The TLC5925IDWRG4 can source up to 25mA and sink up to 50mA per output, making it suitable for driving LEDs, relays, and other loads.
Make sure to connect VCC to a stable 3.3V or 5V power supply, and GND to a solid ground. Also, configure the device using the I2C interface, following the protocol and timing requirements specified in the datasheet.
The OE pin is used to enable or disable all outputs simultaneously. When OE is low, all outputs are enabled. When OE is high, all outputs are disabled, which can be useful for power-saving or during device initialization.
The device has a thermal shutdown feature that activates when the junction temperature exceeds 150°C. Ensure good thermal design practices, such as providing adequate heat sinking, air flow, and PCB thermal management, to prevent overheating.
Yes, but with caution. The device can drive inductive loads, but you must ensure that the output stage is properly clamped to prevent back-EMF damage. Use a flyback diode or other suitable protection circuitry to prevent damage from inductive kickback.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TLC5925IDWRG4 Overview

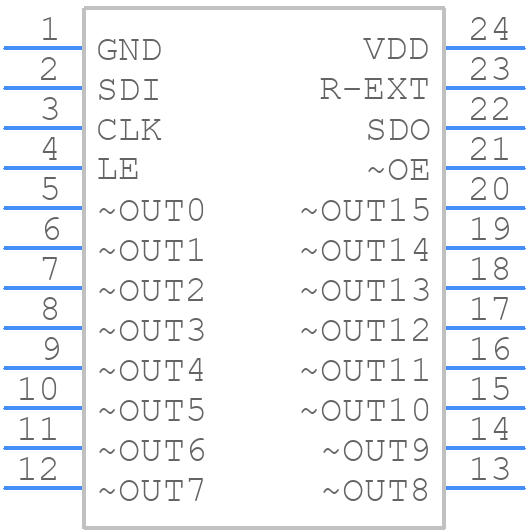

Use the download button to access the TLC5925IDWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC59,
or try a keyword search, such as Display Drivers
