Part Image

TLC5927IPWPRG4 - Texas Instruments

Description: LED DRVR 16Segment 3.3V/5V Automotive 24-Pin HTSSOP EP T/R

Download ECAD Model

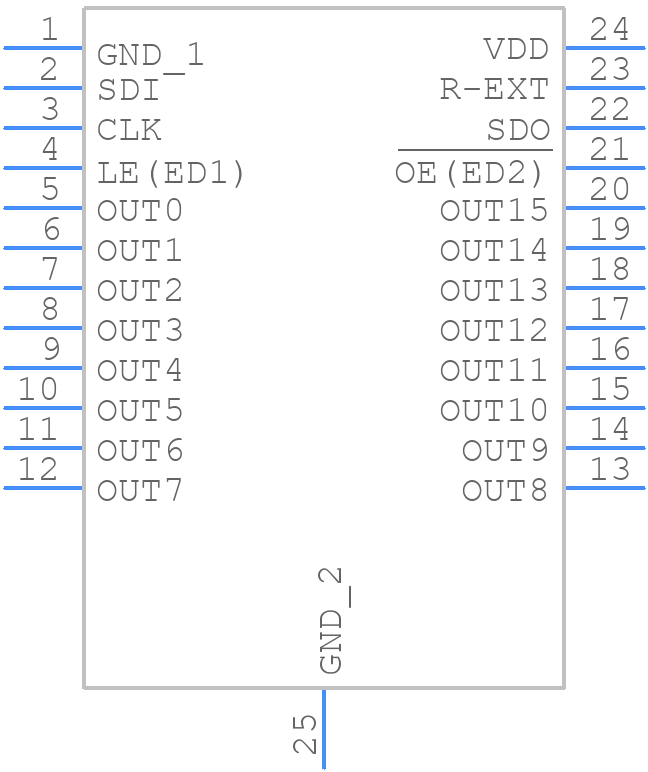

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

TLC5927IPWPRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0024B
click to zoom

3D Models

TLC5927IPWPRG4 - Texas Instruments  - 3D model - Small Outline Packages - PWP0024B
click to zoom

TLC5927IPWPRG4 Details

  • Manufacturer Part Number:

    TLC5927IPWPRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    HTSSOP, TSSOP24,.25

  • Pin Count:

    24

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    8.82

  • Samacsys Modified On:

    2021-10-29 06:26:06

  • Data Input Mode:

    SERIAL

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    16

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    3.3/5 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Subcategory:

    Display Drivers

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    30 MHz

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

TLC5927IPWPRG4 Overview

Use the download button to access the TLC5927IPWPRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC59, or try a keyword search, such as Display Drivers

Parts related to TLC5927IPWPRG4

Showing 0 results

TLC5927IPWPRG4 Alternates

Showing results

Image Part Number Model
Part Image TLC5927QPWPRQ1 Texas Instruments

Automotive 16-bit constant-current LED sink driver with Vled Short detection 24-HTSSOP -40 to 125
