Texas Instruments provides a recommended PCB layout in the TLC59291RGER evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
The TLC59291RGER can deliver high current outputs, so it's essential to ensure proper thermal management and PCB design. Use thick copper traces, and consider adding heat sinks or thermal vias to dissipate heat. Also, ensure that the output pins are connected to a suitable load, such as a LED or a resistor, to prevent overcurrent conditions.
While the TLC59291RGER is specified for 3.3V or 5V operation, it's possible to use it with other voltage supplies within the recommended operating range of 2.7V to 5.5V. However, be aware that the device's performance, including output current and brightness, may vary depending on the supply voltage. Consult the datasheet and perform thorough testing to ensure the device meets your specific requirements.
The TLC59291RGER's grayscale or brightness control can be programmed using the device's built-in pulse-width modulation (PWM) feature. By adjusting the PWM frequency and duty cycle, you can control the brightness of the LEDs connected to the device. Consult the datasheet and application notes for specific programming examples and guidelines.
The TLC59291RGER is designed to drive up to 16 LEDs, with each output capable of sinking up to 45mA of current. However, the actual number of LEDs that can be connected depends on the specific application, LED type, and current requirements. Consult the datasheet and perform thorough testing to ensure the device meets your specific requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC59291RGER Overview

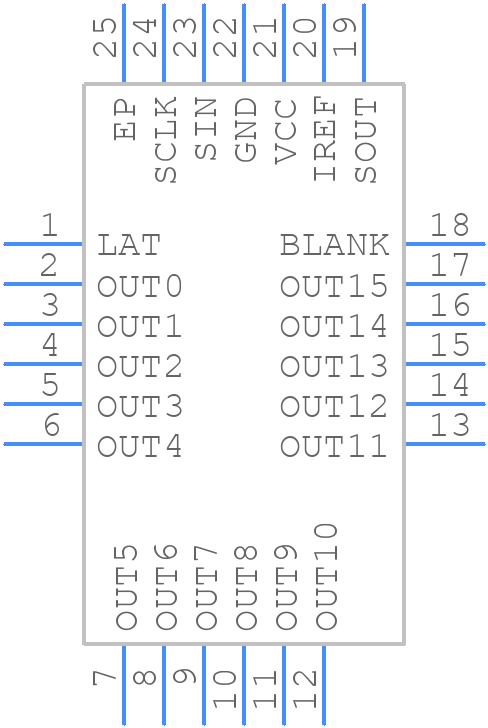

Use the download button to access the TLC59291RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLC59,
or try a keyword search, such as Display Drivers
