The recommended power-up sequence is to apply VCC first, followed by VDD, and then the input signals (e.g., SCLK, SDIN, and XLAT). This ensures that the internal voltage regulators and bias circuits are properly initialized.
To achieve high LED current accuracy and matching, it's essential to use a high-precision external resistor (RREF) and to ensure that the PCB layout is symmetrical and well-designed. Additionally, the TLC5951RTAR has a built-in current error detection feature that can help detect and correct any current mismatches.
The maximum frequency for the SCLK input is 30 MHz. However, it's recommended to operate at a lower frequency (e.g., 10 MHz) to ensure reliable data transfer and to minimize EMI.
The TLC5951RTAR has built-in fault detection features, including open-LED detection, short-LED detection, and over-temperature detection. These features can be used to detect and respond to faults, such as LED failures or overheating. Additionally, external fault detection circuits can be implemented using resistors and comparators.
To minimize noise and ensure reliable operation, it's recommended to follow a star-topology layout for the LED connections, keep the power and ground traces separate, and use a solid ground plane. Additionally, the input signals (e.g., SCLK, SDIN, and XLAT) should be routed away from the LED connections to minimize crosstalk.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLC5951RTAR Overview

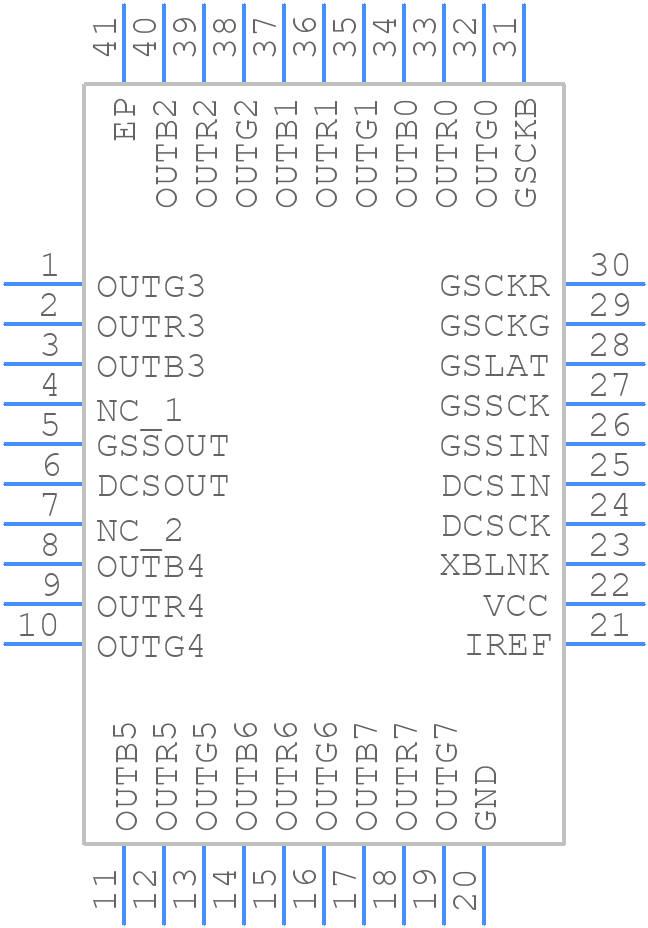

Use the download button to access the TLC5951RTAR schematic symbol, PCB footprint, and 3D model.
