- Part Number TLE2022AMJGB
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Ceramic Dual-In-Line Packages
- Footprint Name Ceramic Dual-In-Line Packages - JG (R-GDIP-T8
- Released Date Sep 13, 2021
- Last Modified Date Nov 30, 2023 6:28 AM UTC
- Pinout / Pin List Click Here (Member Only)
TLE2022AMJGB Details
-
Manufacturer Part Number:
TLE2022AMJGB
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Amplifier Type:
OPERATIONAL AMPLIFIER
TLE2022AMJGB Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure proper biasing, follow the recommended biasing circuit in the datasheet, and make sure to provide a stable voltage supply to the device. Additionally, ensure that the input common-mode voltage is within the recommended range, and that the output load is properly terminated to prevent oscillations.
-
The TLE2022AMJGB is rated for operation from -40°C to 125°C, but it's important to note that the device's performance may degrade at higher temperatures. It's recommended to derate the device's performance according to the temperature derating curve provided in the datasheet.
-
The TLE2022AMJGB has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment is properly grounded. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device.
-
Texas Instruments recommends a soldering profile with a peak temperature of 260°C for a maximum of 10 seconds. It's also important to follow the recommended soldering techniques, such as using a soldering iron with a fine tip and avoiding excessive soldering time.
Trust Checks
System Verified
TLE2022AMJGB Overview

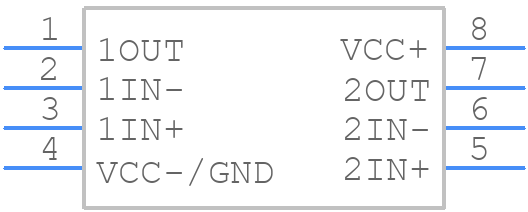

Use the download button to access the TLE2022AMJGB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE20,
or try a keyword search, such as Operational Amplifiers
