Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and oscillations.
The TLE2022MDRG4 requires a dual supply voltage (VCC+ and VCC-) and a bias voltage (VBIAS) to operate correctly. Ensure that the bias voltage is set to the recommended value (typically 1.4V) and that the supply voltages are within the specified range (±15V). Also, make sure to decouple the power supplies with capacitors to reduce noise.
The TLE2022MDRG4 can handle input voltages up to ±10V, but it's recommended to limit the input voltage to ±5V to ensure optimal performance and prevent damage to the device.
To reduce noise and oscillations, use bypass capacitors (e.g., 10nF to 100nF) between the power supply pins and ground, and ensure that the input and output traces are properly terminated. Additionally, use a low-noise power supply and consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
The settling time of the TLE2022MDRG4 depends on the specific application and the output load. However, typical settling times are in the range of 1-10 microseconds. To achieve faster settling times, use a lower output load and ensure that the input signal is properly filtered and terminated.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2022MDRG4 Overview

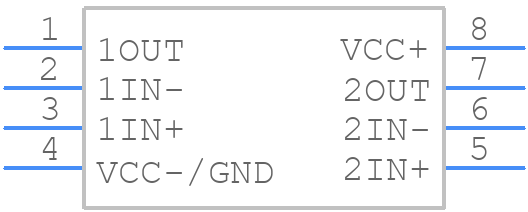

Use the download button to access the TLE2022MDRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE20,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
