TLE2024ACDW - Texas Instruments

Description: Texas Instruments TLE2024ACDW, Quad Op Amp, 1.7MHz, 5 → 28 V, 16-Pin SOIC

Download TLE2024ACDW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

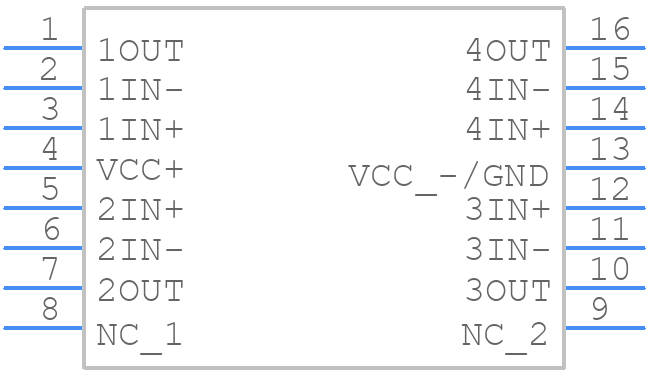

Symbol
TLE2024ACDW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLE2024ACDW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G16)
click to zoom
3D Models
TLE2024ACDW - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G16)
click to zoom

TLE2024ACDW Details

  • Manufacturer Part Number:

    TLE2024ACDW

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.09 µA

  • Bias Current-Max (IIB) @25C:

    0.07 µA

  • Common-mode Reject Ratio-Min:

    90 dB

  • Common-mode Reject Ratio-Nom:

    115 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.006 µA

  • Input Offset Voltage-Max:

    850 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Slew Rate-Min:

    0.45 V/us

  • Slew Rate-Nom:

    0.5 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1700

  • Voltage Gain-Min:

    800000

  • Wideband:

    NO

  • Width:

    7.5 mm

TLE2024ACDW Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a star-ground configuration, with the analog and digital grounds separated and connected at a single point. Additionally, keep the analog and digital signal traces separate and avoid running them parallel to each other. Use a solid ground plane and avoid vias under the device to minimize inductance.
  • The TLE2024ACDW has a thermal pad on the bottom of the package, which should be connected to a solid ground plane or a thermal relief pattern on the PCB. Ensure good airflow around the device, and consider using a heat sink or thermal interface material if operating in high-temperature environments.
  • Power up the VCC supply before the VDD supply, and ensure that the VCC supply is stable before applying the VDD supply. This prevents latch-up and damage to the device.
  • Use a shielded enclosure, and ensure that the PCB layout and routing minimize radiated emissions. Use bypass capacitors on the power supplies, and consider adding ferrite beads or common-mode chokes to reduce electromagnetic interference (EMI).
  • Use a logic analyzer or oscilloscope to monitor the digital signals, and a multimeter or oscilloscope to measure the analog signals. Use a breakout board or a development kit to simplify testing and debugging. Consider using a simulation tool or SPICE model to simulate the device behavior before prototyping.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE2024ACDW Overview

Use the download button to access the TLE2024ACDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE20, or try a keyword search, such as Operational Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
