TLE2027AMJG - Texas Instruments

Description: JG

Download TLE2027AMJG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

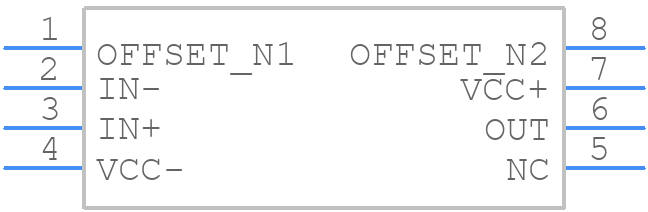

TLE2027AMJG - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TLE2027AMJG - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - JG (R-GDIP-T8
click to zoom
3D Models
TLE2027AMJG - Texas Instruments - 3D model - Ceramic Dual-In-Line Packages - JG (R-GDIP-T8
click to zoom

TLE2027AMJG Details

  • Manufacturer Part Number:

    TLE2027AMJG

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.15 µA

  • Bias Current-Max (IIB) @25C:

    0.09 µA

  • Common-mode Reject Ratio-Min:

    113 dB

  • Common-mode Reject Ratio-Nom:

    131 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.09 µA

  • Input Offset Voltage-Max:

    25 µV

  • JESD-30 Code:

    R-GDIP-T8

  • JESD-609 Code:

    e0

  • Length:

    9.58 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -19 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    5.08 mm

  • Slew Rate-Min:

    1 V/us

  • Slew Rate-Nom:

    2.8 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    5.6 mA

  • Supply Voltage Limit-Max:

    19 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    13000

  • Voltage Gain-Min:

    5000000

  • Wideband:

    NO

  • Width:

    7.62 mm

TLE2027AMJG Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a star-ground configuration, with the analog and digital grounds separated and connected at a single point. Additionally, it's essential to keep the analog and digital signal traces separate and away from each other to minimize noise coupling.
  • The TLE2027AMJG requires a specific power-up and power-down sequencing to prevent damage or incorrect operation. The recommended sequence is to power up the analog supply (VCC) before the digital supply (VDD), and power down the digital supply before the analog supply.
  • The TLE2027AMJG can drive a maximum capacitive load of 100 pF. Exceeding this limit can affect the output impedance and cause oscillations or instability. It's essential to consider the capacitive load when designing the circuit to ensure stable operation.
  • The TLE2027AMJG has built-in overvoltage protection (OVP) and undervoltage protection (UVP) mechanisms. The OVP protects the device from voltages above 18 V, while the UVP prevents operation below 2.7 V. Additionally, the device has a power-on reset (POR) circuit that resets the device during power-up.
  • The recommended operating temperature range for the TLE2027AMJG is -40°C to 85°C. Temperature affects the device's performance, with increased temperature causing a decrease in accuracy and an increase in power consumption. It's essential to consider the operating temperature when designing the circuit to ensure optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TLE2027AMJG Overview

Use the download button to access the TLE2027AMJG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE20, or try a keyword search, such as Operational Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
