The maximum power dissipation of the TLE2071ACD is dependent on the package type and ambient temperature. For the D package (SOIC), the maximum power dissipation is 1.4W at 25°C. However, it's essential to calculate the power dissipation based on the specific application and ensure it's within the recommended limits to prevent overheating.
To ensure stability in a unity-gain configuration, it's recommended to add a capacitor (typically 10-22pF) between the output and the inverting input pins. This capacitor helps to compensate for the internal pole and ensures stability. Additionally, it's essential to follow proper PCB layout and decoupling practices to minimize noise and oscillations.
The recommended input common-mode voltage range for the TLE2071ACD is between VCC- and VCC+ (i.e., the power supply rails). However, it's essential to note that the input common-mode voltage range can affect the op-amp's performance, and operating outside this range may lead to reduced performance or even damage to the device.
While the TLE2071ACD can be used as a comparator, it's not the most suitable device for this application. The TLE2071ACD is an op-amp designed for linear applications, and its performance as a comparator may not be optimal. If you need a comparator, it's recommended to use a dedicated comparator device, such as the LM339 or TLV7031, which are designed specifically for this purpose.
To handle ESD protection when working with the TLE2071ACD, it's essential to follow proper handling and storage procedures. Use an anti-static wrist strap or mat, and ensure that the device is stored in an anti-static package. Additionally, consider adding ESD protection devices, such as TVS diodes or ESD protection arrays, to your circuit design to protect the TLE2071ACD from electrostatic discharge.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2071ACD Overview

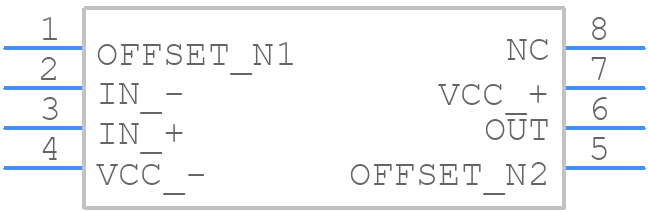

Use the download button to access the TLE2071ACD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE20,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
