Texas Instruments recommends a star-ground configuration, with the op-amp's ground pin connected to a central ground point. Additionally, keep the input and output traces short and away from noise sources, and use a ground plane to reduce EMI.
To minimize input bias current effects, use a high-impedance source, such as a voltage divider, and ensure that the input impedance is matched for both inputs. You can also use a bias current cancellation technique, such as a current mirror or a super-beta input stage.
The TLE2084CDWR can drive a maximum capacitive load of 100 pF without oscillation or instability. However, this value may vary depending on the specific application and PCB layout. It's recommended to use a series resistor to dampen the capacitive load and prevent oscillation.
Use a voltage clamp or a transient voltage suppressor (TVS) to protect the op-amp from overvoltage and ESD damage. Additionally, ensure that the PCB layout provides a clear path for ESD discharge to ground, and use ESD-sensitive handling procedures during assembly and testing.
Use a 0.1 μF ceramic capacitor in parallel with a 10 μF tantalum capacitor to decouple the power supply. Place the capacitors as close as possible to the op-amp's power pins, and ensure that the PCB layout provides a low-impedance path for the decoupling capacitors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2084CDWR Overview

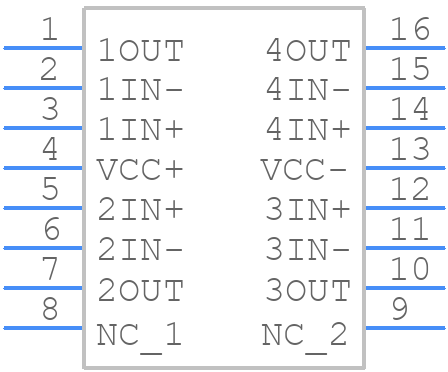

Use the download button to access the TLE2084CDWR schematic symbol, PCB footprint, and 3D model.
