TLE2141AMJGB - Texas Instruments

Description: High Speed High Drive Precision Operational Amplifier

Download TLE2141AMJGB Model

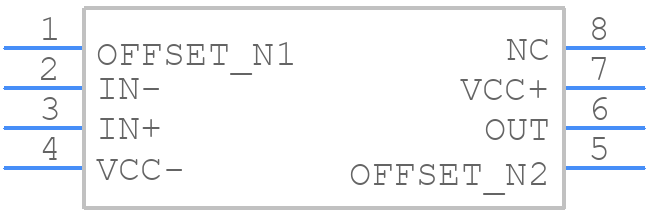

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TLE2141AMJGB - Texas Instruments PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - JG (R-GDIP-T8
click to zoom
3D Models
TLE2141AMJGB - Texas Instruments  - 3D model - Ceramic Dual-In-Line Packages - JG (R-GDIP-T8
click to zoom

TLE2141AMJGB Details

  • Manufacturer Part Number:

    TLE2141AMJGB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    1.5 µA

  • Bias Current-Max (IIB) @25C:

    1.5 µA

  • Common-mode Reject Ratio-Min:

    85 dB

  • Common-mode Reject Ratio-Nom:

    108 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.1 µA

  • Input Offset Voltage-Max:

    1000 µV

  • JESD-30 Code:

    R-GDIP-T8

  • JESD-609 Code:

    e0

  • Length:

    9.6 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, GLASS-SEALED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883

  • Seated Height-Max:

    5.08 mm

  • Slew Rate-Min:

    27 V/us

  • Slew Rate-Nom:

    45 V/us

  • Supply Current-Max:

    4.4 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    6000

  • Voltage Gain-Min:

    5000

  • Wideband:

    NO

  • Width:

    6.67 mm

TLE2141AMJGB Frequently Asked Questions (FAQs)

  • To minimize noise and ensure optimal performance, it's recommended to follow a star-grounding scheme, keep the input and output traces short and separate, and use a solid ground plane. Additionally, place decoupling capacitors close to the op-amp's power pins and use a low-ESR capacitor for the bypass capacitor.
  • To minimize the effects of input bias current and offset voltage, use a high-impedance input source, and consider adding a voltage follower or a buffer stage. Additionally, use a low-offset voltage op-amp like the TLE2141AMJGB, and consider trimming the offset voltage using an external potentiometer or resistor network.
  • The TLE2141AMJGB can drive a maximum capacitive load of around 100 pF to 200 pF, depending on the frequency and desired stability. Exceeding this limit may cause oscillations or instability. To drive heavier capacitive loads, consider adding a series resistor or using an op-amp with a higher capacitive drive capability.
  • To ensure stability, follow the recommended layout and PCB design guidelines, use a low-ESR capacitor for the bypass capacitor, and avoid using long input and output traces. Additionally, consider adding a compensation capacitor or a series resistor to the feedback network to prevent oscillations.
  • Use a combination of ceramic and electrolytic capacitors for power supply decoupling and bypassing. A 0.1 μF ceramic capacitor and a 10 μF electrolytic capacitor in parallel, placed close to the op-amp's power pins, can provide effective decoupling and filtering.
