Texas Instruments provides a recommended PCB layout in the application note SLVAE03, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The output voltage ripple of the TLE2161IDG4 can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where Iout is the output current, ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
Although the datasheet specifies a maximum input voltage of 15V, the TLE2161IDG4 can handle up to 18V for short periods of time (e.g., during power-up or voltage transients). However, it is recommended to operate the device within the specified maximum input voltage to ensure reliable operation and prevent damage.
To ensure that the TLE2161IDG4 operates within its thermal limits, it is recommended to follow the thermal design guidelines provided in the datasheet, including calculating the junction temperature (TJ) using the formula: TJ = TA + (PD * θJA), where TA is the ambient temperature, PD is the power dissipation, and θJA is the junction-to-ambient thermal resistance.
Yes, the TLE2161IDG4 is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, it is recommended to consult with Texas Instruments' technical support and review the device's qualification data to ensure that it meets the specific requirements of your application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2161IDG4 Overview

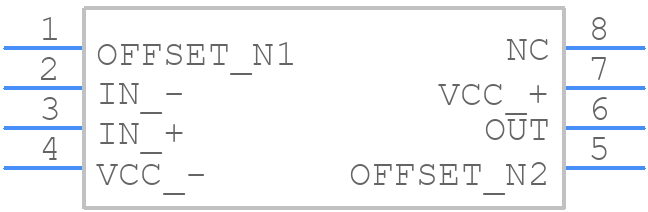

Use the download button to access the TLE2161IDG4 schematic symbol, PCB footprint, and 3D model.
