The TLE2426IP is a high-frequency device, and proper layout and placement are crucial for its operation. TI recommends placing the device close to the power supply, using short traces, and avoiding vias and corners. A solid ground plane and decoupling capacitors are also essential. Refer to the TI application note 'TLE2426IP Layout and Placement Guidelines' for more information.
The TLE2426IP can output a range of voltages from 1.2V to 12V. To choose the correct output voltage, consider the voltage requirements of your load, the input voltage, and the desired output current. TI provides a voltage selection guide in the datasheet, and you can also use the TI Power Designer tool to help with the selection process.
The TLE2426IP can handle input voltages up to 15V, but it's recommended to keep the input voltage below 13.2V to ensure reliable operation and prevent damage to the device.
To ensure stability, follow the recommended layout and placement guidelines, use a solid ground plane, and decouple the input and output with capacitors. Additionally, make sure the output capacitor is sufficient for the desired output voltage and current. TI also recommends adding a small resistor (e.g., 10Ω) in series with the output capacitor to prevent oscillation.
The TLE2426IP is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. TI recommends derating the output current and voltage at high temperatures to ensure reliable operation. Consult the datasheet and TI's thermal design guidelines for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE2426IP Overview

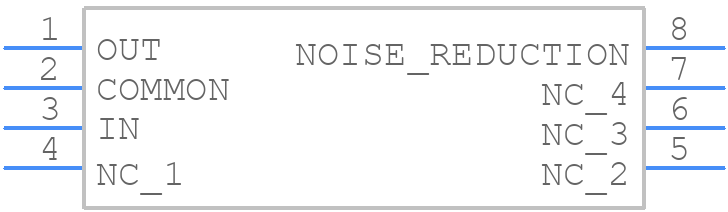

Use the download button to access the TLE2426IP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE24,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
