A good PCB layout for the TLE4726G involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it away from sensitive components can help reduce EMI.
When selecting an inductor for the TLE4726G, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating higher than the peak current of the TLE4726G, and a DC resistance that minimizes power loss.
The TLE4726G is rated for operation from -40°C to 150°C, but the maximum ambient temperature range depends on the specific application and cooling conditions. In general, it's recommended to keep the device junction temperature below 125°C for reliable operation.
Yes, the TLE4726G is qualified according to AEC-Q100, making it suitable for automotive and high-reliability applications. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific requirements of the application.
To troubleshoot issues with the TLE4726G, start by checking the PCB layout, component selection, and soldering quality. Verify that the input voltage, output voltage, and current are within the recommended specifications. Use an oscilloscope to check for voltage spikes, ringing, or other anomalies. If the issue persists, consult the datasheet and application notes or contact Infineon's technical support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TLE4726G Overview

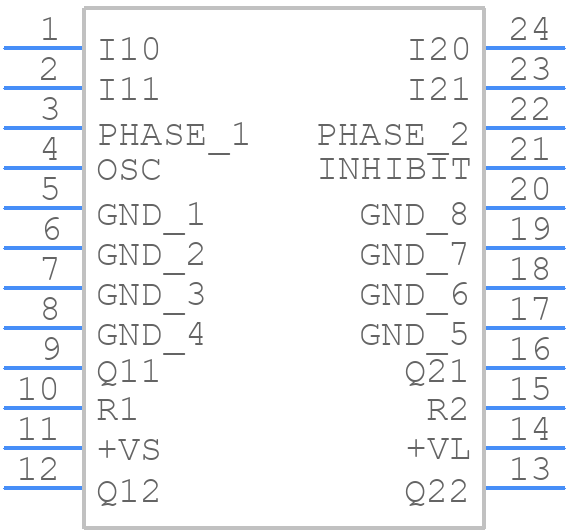

Use the download button to access the TLE4726G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TLE47,
or try a keyword search, such as Motion Control Electronics
